Fog lights - threaded cover:: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Fog light, removing. See FOG LIGHTS, REMOVING AND INSTALLING .

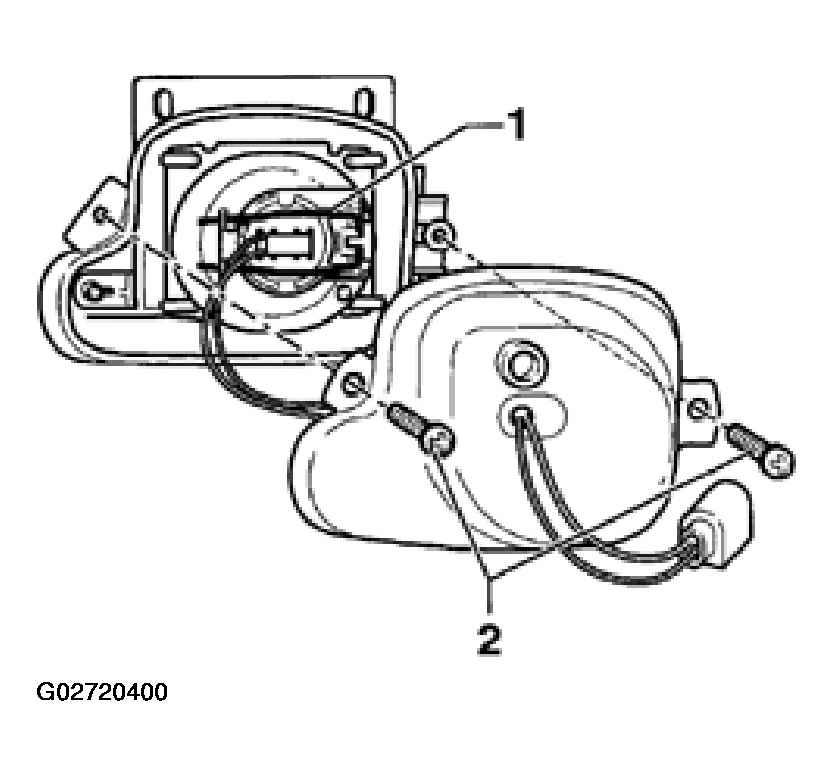

Remove Phillips head bolts -2- at housing cover.
Disengage wire clamp -1- and remove bulb from housing.

Fig 1: Removing Phillips Head Bolts & Disengaging Wire Clamp - Fog Light, Threaded Cover

Courtesy of AUDI OF AMERICA, INC.

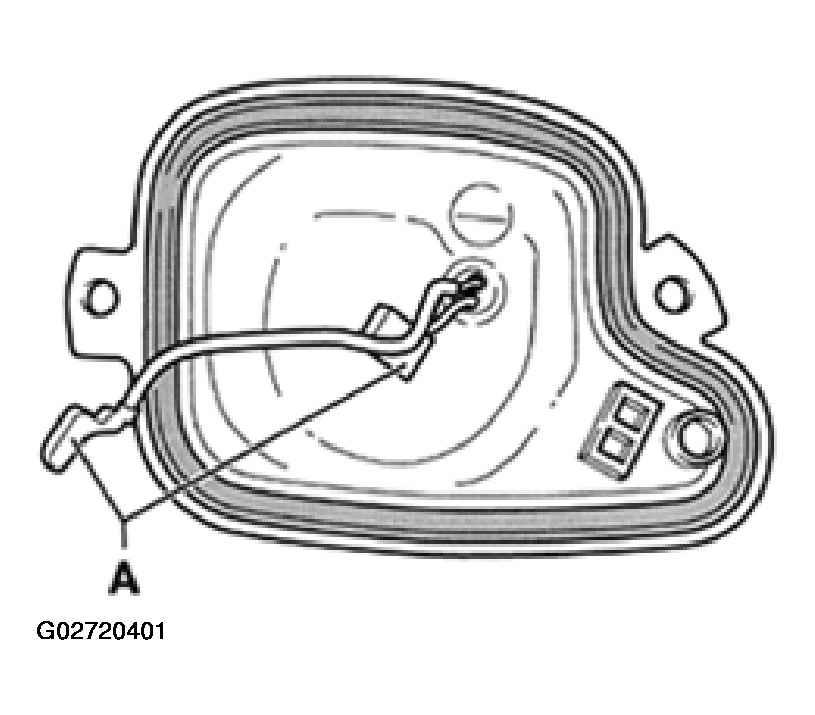

Disconnect electrical connection -A- of lamp from wire connector in housing cover.

Fig 2: Disconnecting Electrical Connection Of Fog Lamp - Fog Light, Threaded Cover

Courtesy of AUDI OF AMERICA, INC.
