Terminal assignment of the 4-pin harness connector at sender for fuel gauge
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

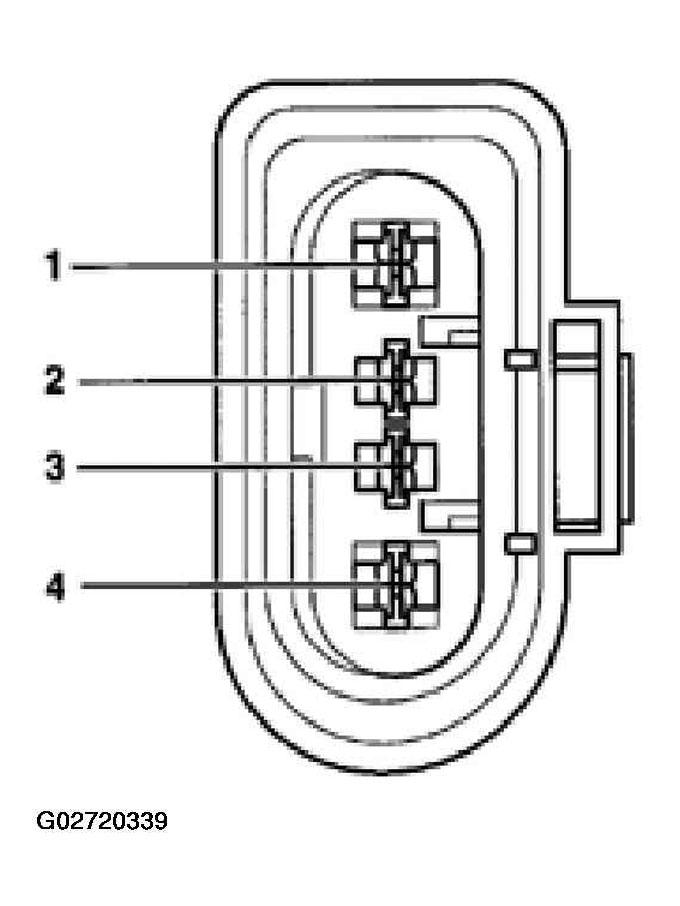

The following list refers to Fig 1
.
- B+ activation of electrical fuel pump
- Wire connection from sender for fuel gauge to instrument cluster (fuel gauge)
- Ground (GND) from sender for fuel gauge (sensor Ground (GND))
- Ground (GND) electrical fuel pump
