Green 32-pin multi-pin connector

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Not assigned
  2. Transponder
  3. Not assigned
  4. Not assigned
  5. W-wire
  6. Not assigned
  7. Right turn signal
  8. External buzzer
  9. External gong
  10. Airbag
  11. Stand-still time output
  12. Terminal 61
  13. Parking brake/BRAKE
  14. CHECK
  15. Oil level/oil temperature
  16. Not assigned
    17. Fig 1: Identifying Green 32-Pin Multi-Pin Connector
    G02720329Courtesy of AUDI OF AMERICA, INC.
  17. Transponder 2
  18. CAN low speed (powertrain) (high +)
  19. CAN low speed (powertrain) (low -)
  20. CAN low speed (powertrain) (screen)
  21. ABS
  22. CAN low speed (comfort) (high +)
  23. CAN low speed (comfort) (low -)
  24. CAN low speed (comfort) (screen)
  25. Hood
  26. Fuel filler cap
  27. Belt buckle
  28. K-wire
  29. Outside temperature-input
  30. Terminal 58d (ext. Dimmer potentiometer)
  31. Selector range display
  32. Automatic vertical headlight aim control system

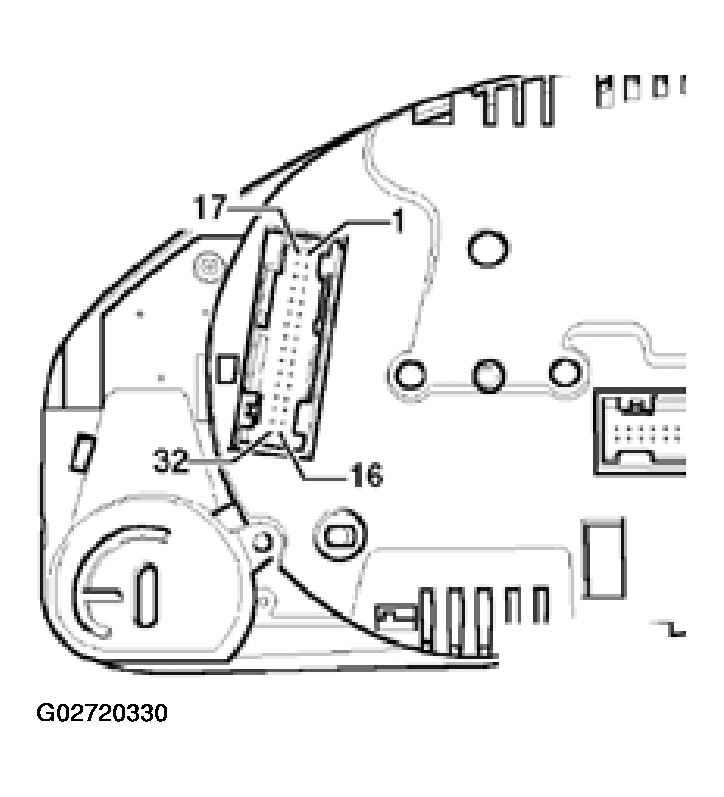

    33. Fig 2: Identifying Green 32-Pin Multi-Pin Connector
    G02720330Courtesy of AUDI OF AMERICA, INC.
