Gray 32-pin multi-pin connector

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allocated vertically for VDO version.
NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Menu selection switch (menu)
  2. Menu selection switch (out A)
  3. Menu selection switch (out B)
  4. Menu selection switch (Ener)
  5. CAN high speed display (high +)
  6. CAN high speed display (low -)
  7. CAN high speed display (screen)
  8. Not assigned
  9. Not assigned
  10. Not assigned
  11. Enable
  12. Clock
  13. Data
  14. Brake light
  15. Windshield washer fluid level
  16. Rear lights/low beams (lamp control)

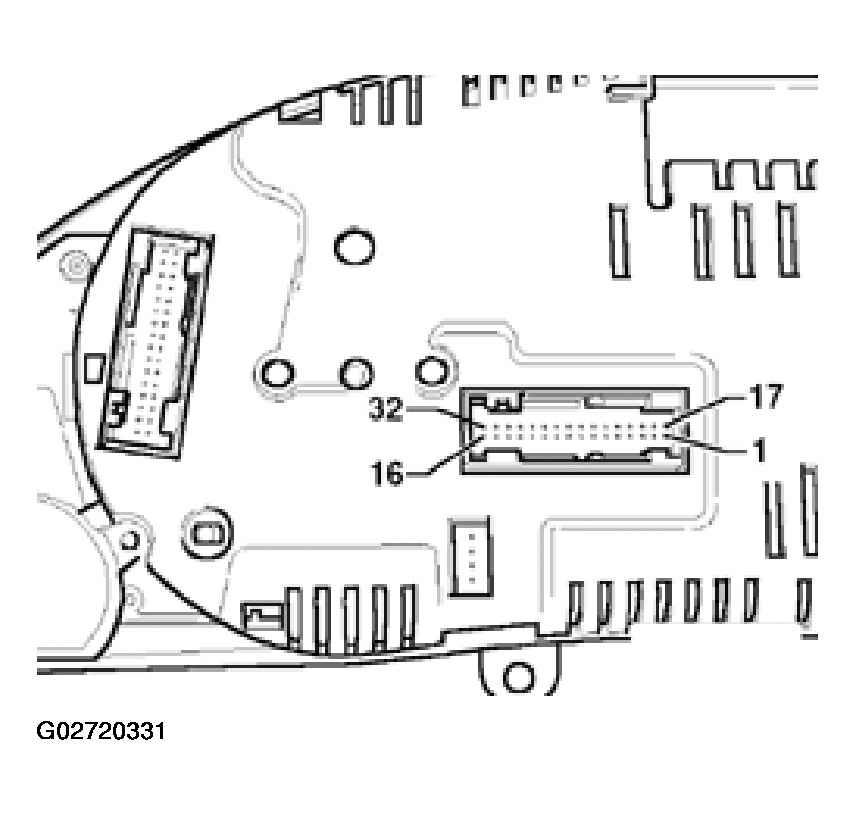

    17. Fig 1: Identifying Gray 32-Pin Multi-Pin Connector
    G02720331Courtesy of AUDI OF AMERICA, INC.
  17. Left board computer
  18. Driver information system, right
  19. Driver information system, reset
  20. Remote input, auxiliary heater
  21. Summer / winter switch-over
  22. Auxiliary heater on
  23. Button branch 1 navigation
  24. Button branch 2 navigation
  25. Button branch telematic
  26. Not assigned
  27. Not assigned
  28. Not assigned
  29. Not assigned
  30. Not assigned
  31. Not assigned
  32. Not assigned

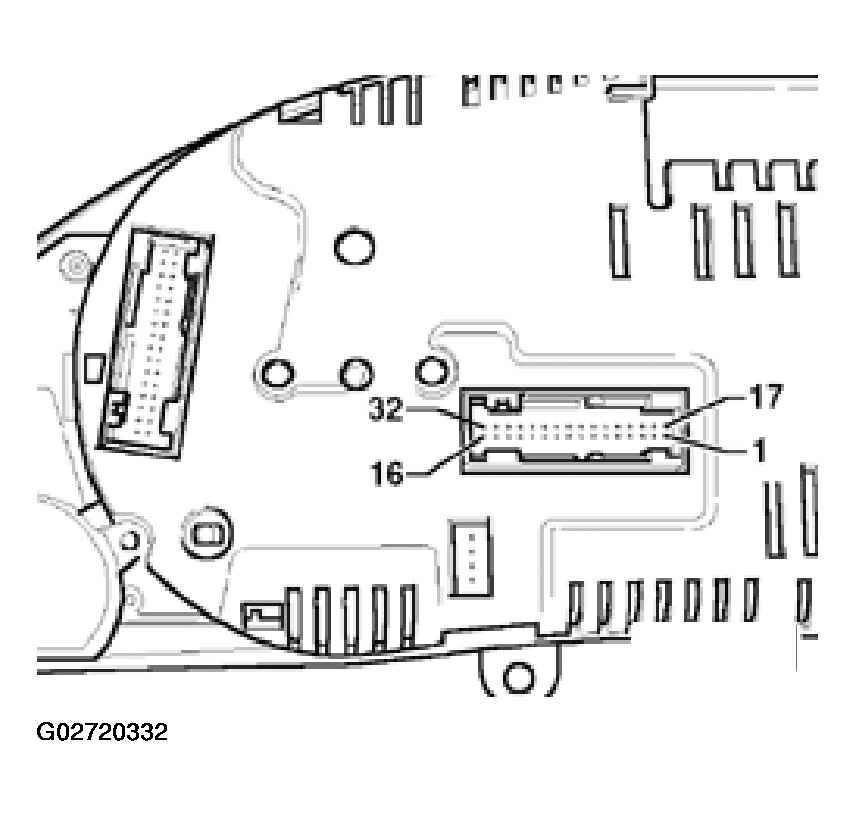

    33. Fig 2: Identifying Gray 32-Pin Multi-Pin Connector
    G02720332Courtesy of AUDI OF AMERICA, INC.
