Blue 32-pin multi-pin connector

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Terminal 15
  2. Brake pad wear
  3. Speedometer output 1
  4. Not assigned
  5. Tank sensor
  6. Tank warning OBD 2
  7. Terminal 31 (sensor Ground (GND))
  8. Coolant temperature
  9. Terminal 31 (load Ground (GND))
  10. Oil pressure 2 (high)
  11. RPM signal
  12. A/C shut-off
  13. E-Gas/glow plug control
  14. Level control
  15. Terminal 58d
  16. Trailer turn signal

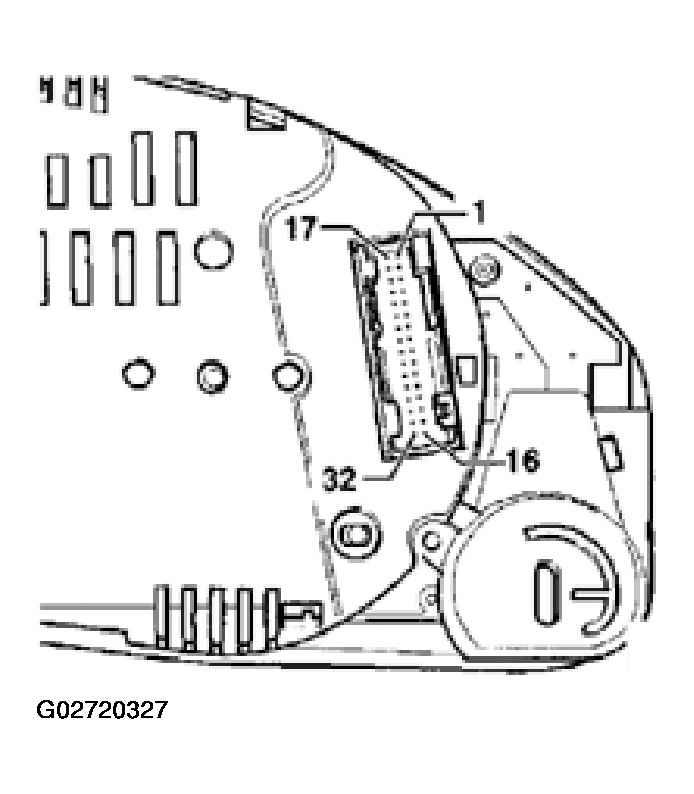

    17. Fig 1: Identifying Blue 32-Pin Multi-Pin Connector
    G02720327Courtesy of AUDI OF AMERICA, INC.
  17. High beam
  18. Left turn signal
  19. Not assigned
  20. Terminal 58s
  21. Driver door contact
  22. Lack of coolant
  23. Terminal 30
  24. Terminal 31 (load Ground (GND))
  25. Consumption signal
  26. Right parking light
  27. Left parking light
  28. Tachometer input
  29. Brake
  30. S-contact
  31. Speedometer output 2
  32. ESP/ASR
    33. Fig 2: Identifying Blue 32-Pin Multi-Pin Connector
    G02720328Courtesy of AUDI OF AMERICA, INC.
