Instrument cluster bulb and multi-pin connector locations

NOTE: All except three of the warning/indicator lamps are LED lamps. If one of the LED lamps is faulty, the entire instrument cluster must be replaced.

1. High beam indicator lamp, (1.2 W)
2. Electronic Stability Program (ESP) indicator lamp, (1.2 W)
3. Engine Malfunction Indicator Lamp (MIL), (1.2 W)

1. 32-pin connector for basic functions, blue
2. 32-pin connector for additional functions, green
3. 20-pin connector for driver information display, red

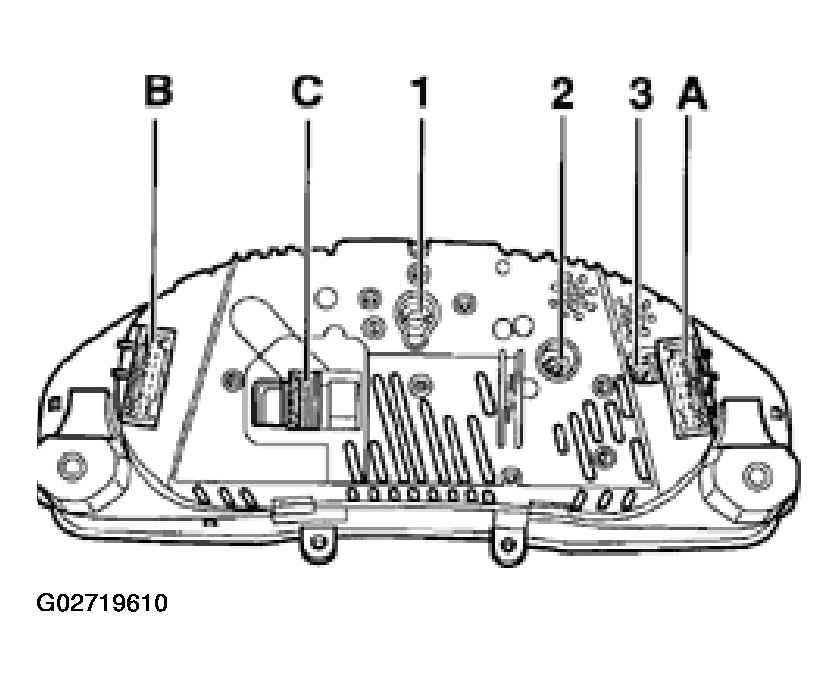

Fig 1: Identifying Instrument Cluster Electrical Connectors (Up To M.Y. 1999)
