Center armrest, removing and installing

The following list pertains to Fig 1 .

1. Center armrest
   • Remove rear vent and rear air-duct connecting piece. See REAR VENT AND REAR AIR-DUCT CONNECTING PIECE, REMOVING  .
   • On center armrest with telephone, disconnect connector -2- by squeezing retainer tabs -3-.
   • Remove nut -4-.
   • Remove center armrest -1-.
   • When installing, clamp in connector -2- on right-hand side between support bracket and center console.
2. Connector
3. Retainer tabs
4. Nut
   • Tightening torque: 26 Nm (19 ft lb)

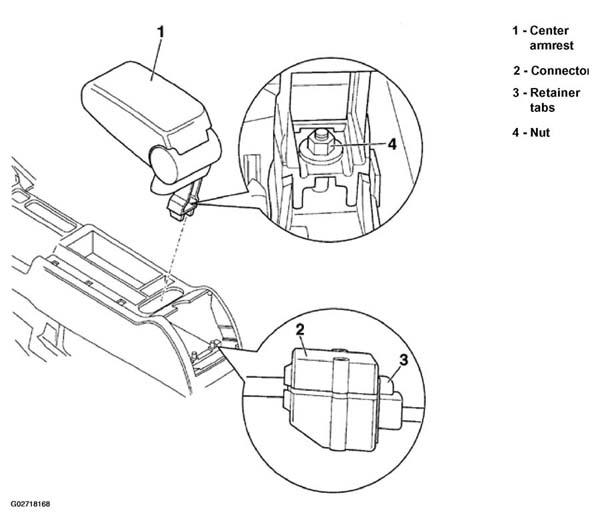

Fig 1: Removing Center Armrest
Courtesy of AUDI OF AMERICA, INC.
