Tailgate trim (sun shade), removing and installing
>>
Screw behind warning triangle
Screw behind warning triangle
Open flap -1- for warning triangle on tailgate trim -2-.
Remove warning triangle.
Push Velcro strip -3- clear to the side.
Remove screw -4-.
Tightening torque: 2.5 Nm (22 in lb)

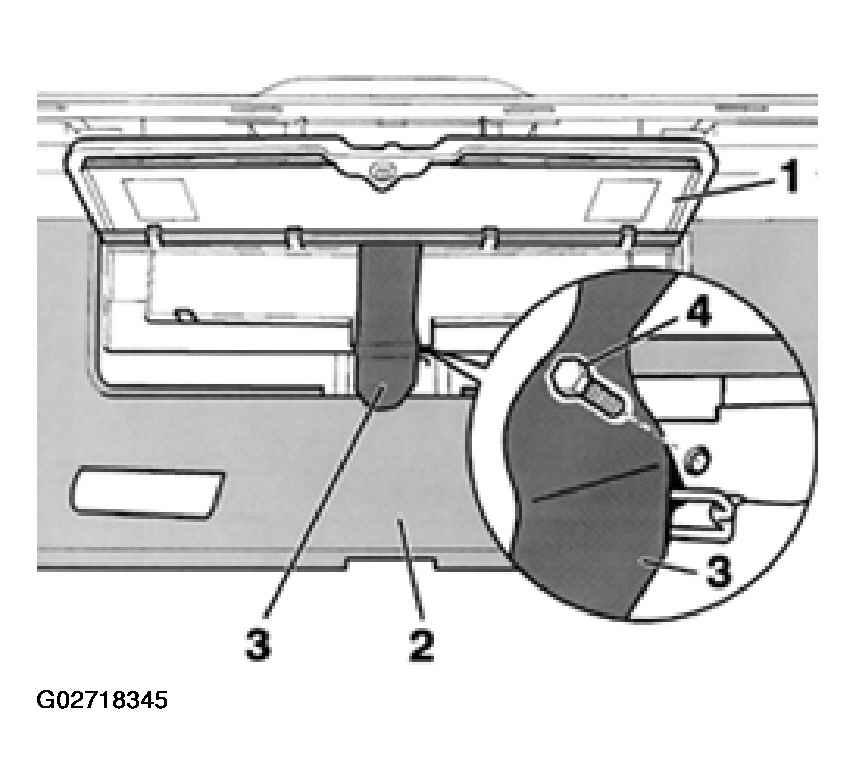

Fig 1: Locating Screw Behind Warning Triangle (Avant)
Courtesy of AUDI OF AMERICA, INC.
