Guide, removing and installing

Remove bumper.
Remove screw w/washer assembly -1- and remove guide piece -2-.
- Tightening torque: 1 Nm (9 in. lb)
- Item -3-: clips

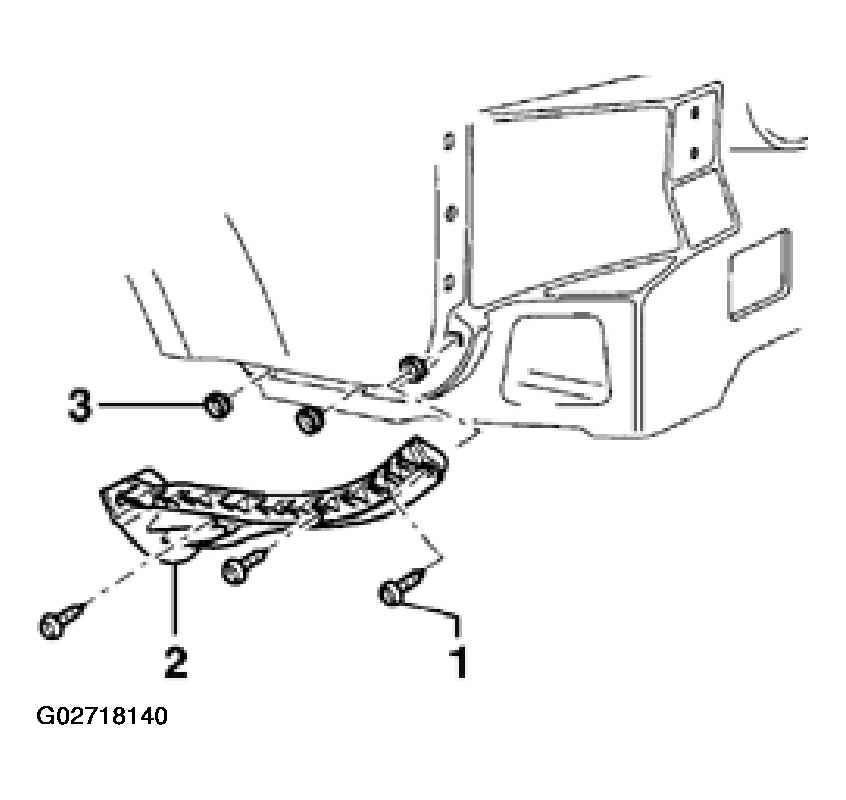

Fig 1: Locating Guide Piece Assembly

Courtesy of AUDI OF AMERICA, INC.
