Removing in vehicles with manual transmission: Notes
- Pry the center console insert together with the shift boot upward and off.

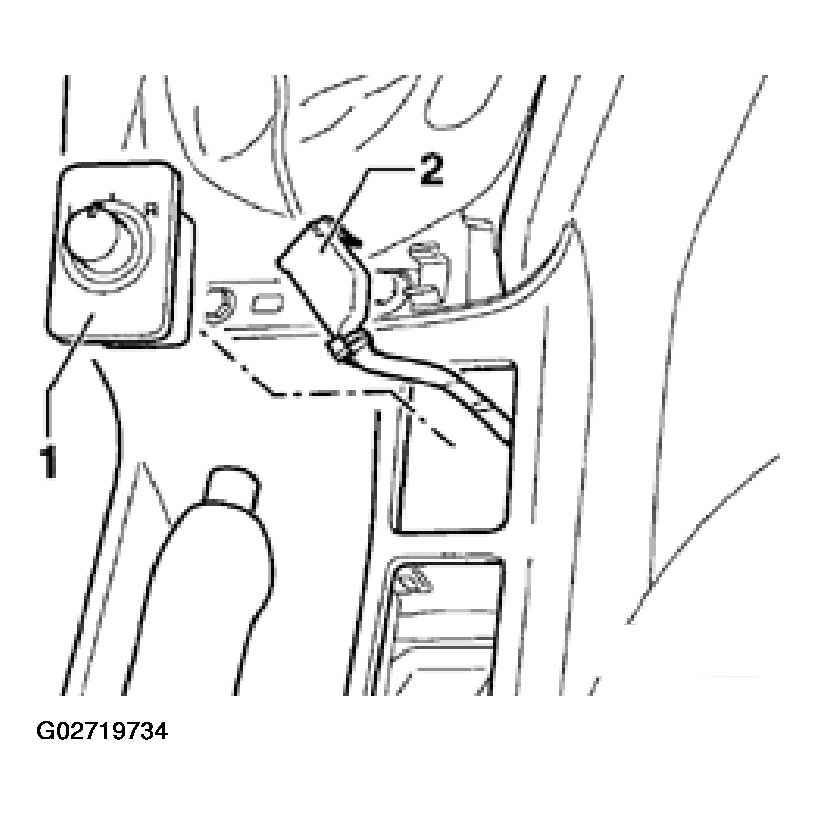

- Using hand, press mirror adjustment switch -1- from bottom upward and out, starting from center console.
- Disconnect electrical harness connector -2- at mirror adjustment switch -1-.
