Removing in vehicles with automatic transmission:: Notes
- Pry center console insert upward and off.
- Carefully insert a screwdriver in the hole at right next to the two mounting bolts for the center console.

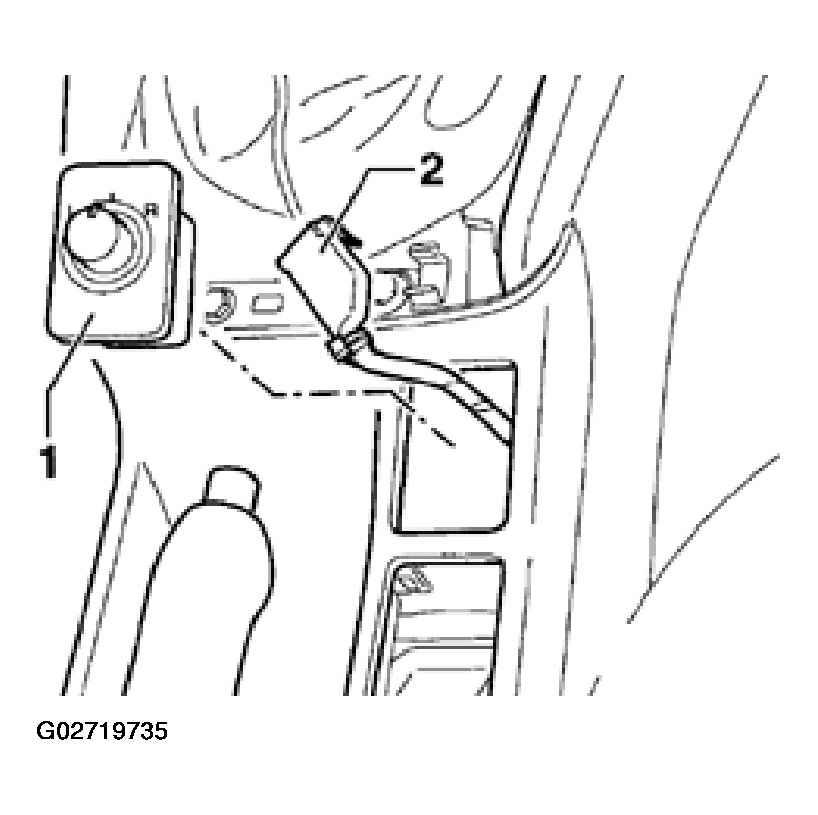

- Once the lower part of the mirror adjustment switch -1- is felt, lightly press mirror adjustment switch using the screwdriver and pry it out.
- Disconnect electrical harness connector -2- at mirror adjustment switch -1-.
