Sender III for fuel gauge -G237-, checking

Specified values:

• Tank empty: approximately 30 ohm
• Tank full: approximately 81.5 ohm

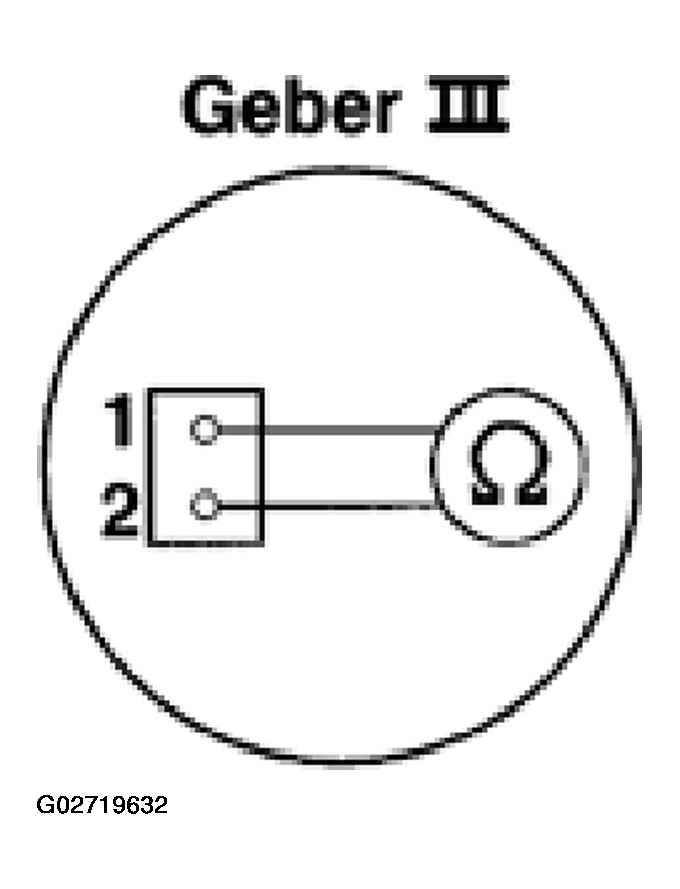

Fig 1: Checking Sender III -G237- For Fuel Gauge (Up To M.Y. 1999)

If specifications are not obtained:

• Check wiring per wiring diagram.
• If wiring is faulty, repair wiring.

If wiring is OK:

• Remove sender from tank.
• Test sender.

If specifications are still not obtained:

• Replace sender.
