32-pin connector for basic functions, blue

NOTE: The following list refers to Fig 1 and Fig 2 .

Terminal 15
Right turn signal
Speedometer output 1
Vacant
Fuel gauge sender
Airbag
Terminal 31 sensor Ground (GND)
Coolant temperature
Terminal 31 load Ground (GND)
Oil pressure switch
Engine speed (RPM) signal
Terminal 61
CAT
Self-levelling suspension
Terminal 58d
Malfunction Indicator Lamp (MIL)

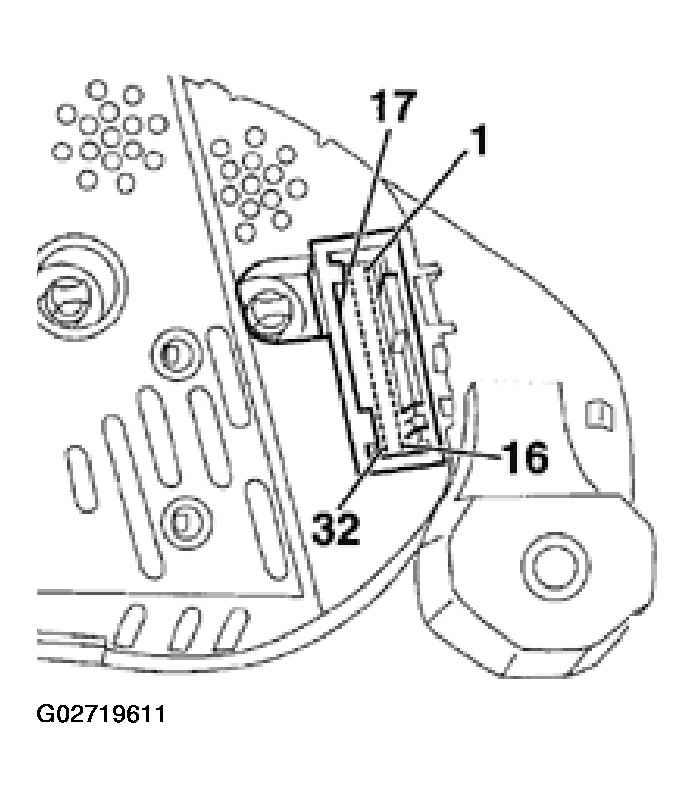

Fig 1: Identifying 32-Pin Connector For Basic Functions, Blue (Up To M.Y. 1999)

G02719611

32-pin connector for basic functions, blue, continued

High beams
Left turn signal
ABS
Terminal 58s
Door contact, driver's side
Coolant level low
Terminal 30
Terminal 31 load Ground (GND)
K-wire
Right parking light
Left parking light
Speedometer input
Brake fluid level/pressure
S-contact
Seat belt buckle
Electronic Stability Program (ESP)

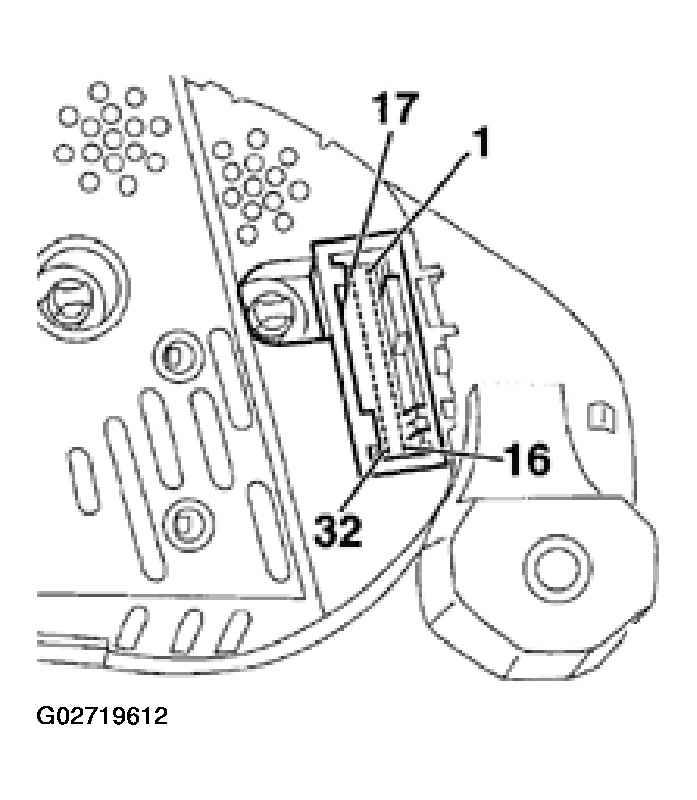

Fig 2: Identifying 32-Pin Connector For Basic Functions, Blue (Up To M.Y. 1999)

G02719612
