32-pin connector for additional functions, green

NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Vacant
  2. Transponder 1
  3. Vacant
  4. Immobilizer
  5. W-wire
  6. Vacant
  7. Brake pads
  8. Input for outside buzzer control (currently vacant)
  9. Input for outside gong/chime control (currently vacant)
  10. Fuel tank warning output signal for Engine Control Module (ECM)
  11. Standing time output
  12. Air conditioning shut-off
  13. Parking brake
  14. Electronic throttle
  15. Side marker light
  16. Vacant

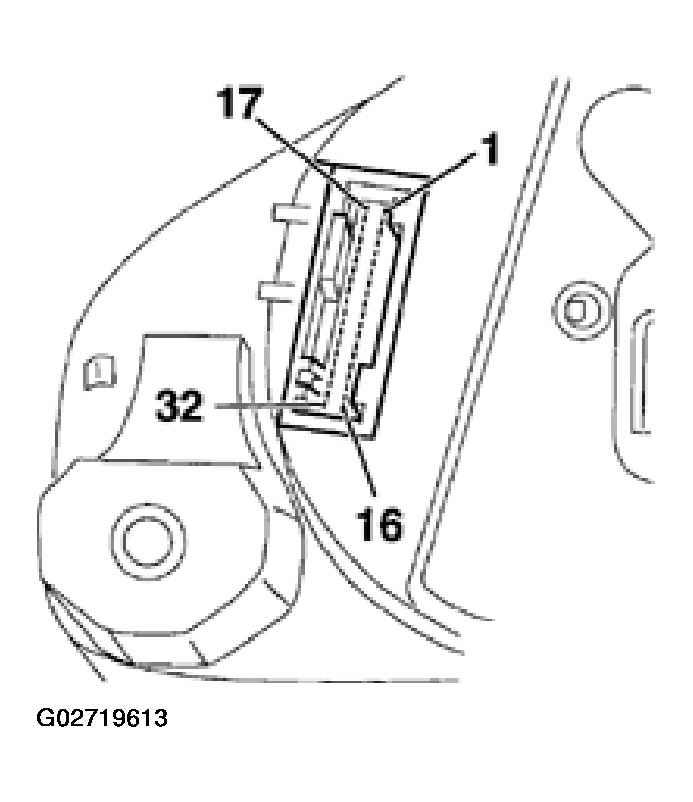

    17. Fig 1: Identifying 32-Pin Connector For Additional Functions, Green (Up To M.Y. 1999)
    G02719613

    32-pin connector for additional functions, green, continued

  17. Transponder 2
  18. Vacant
  19. Vacant
  20. Vacant
  21. Oil temperature
  22. Vacant
  23. Vacant
  24. Vacant
  25. Vacant
  26. Vacant
  27. Vacant
  28. Vacant
  29. Terminal 58d (outside dimmer potentiometer)
  30. Speedometer output 2
  31. Vacant
  32. Vacant

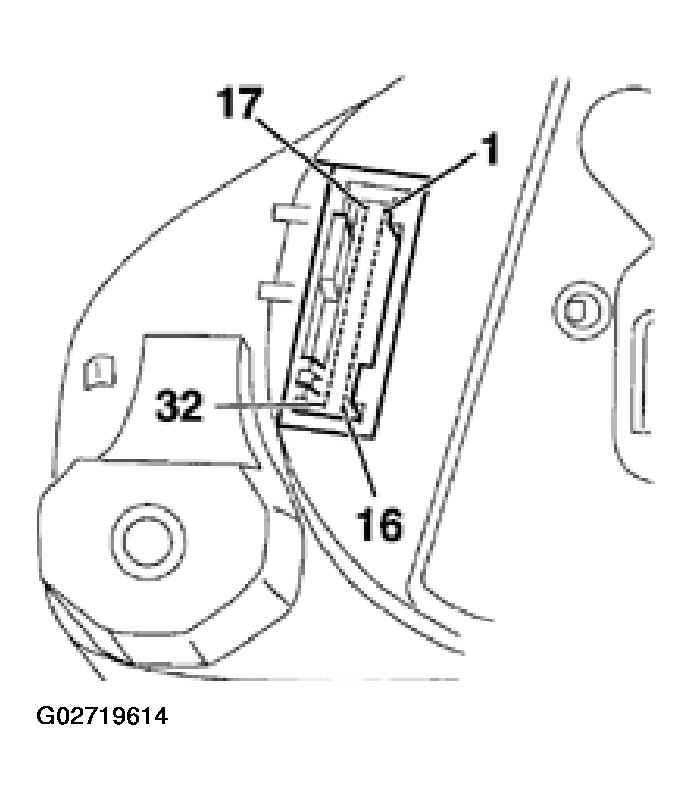

    33. Fig 2: Identifying 32-Pin Connector For Additional Functions, Green (Up To M.Y. 1999)
    G02719614
