Instrument cluster, removing and installing: Removing
- Using steering column adjustment, pull steering wheel out and down as far as it will go.

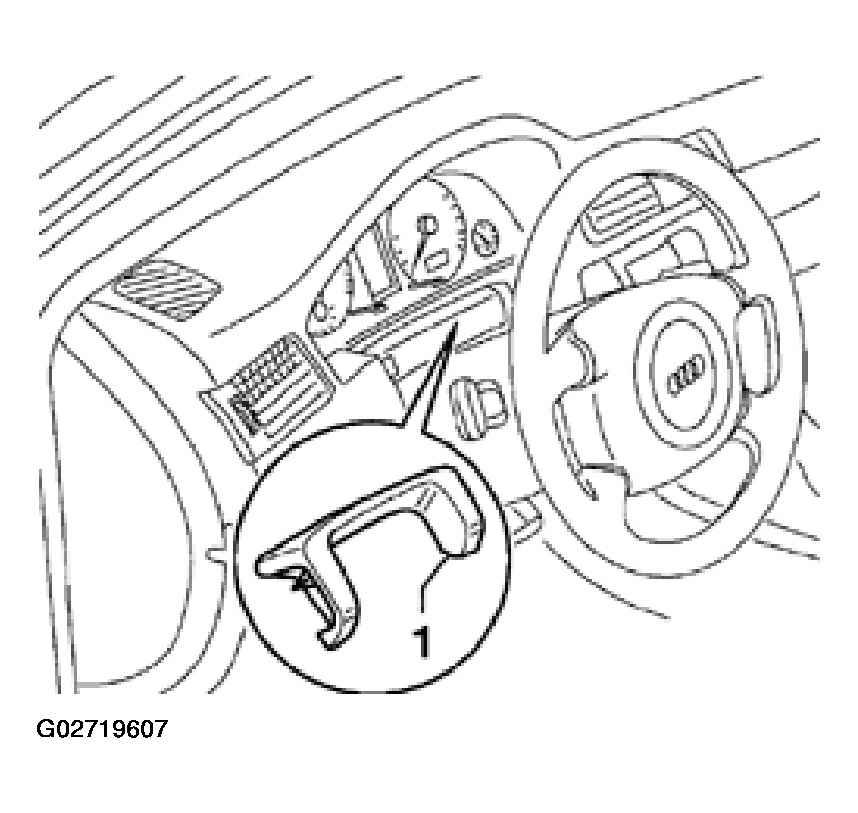

- Push up on side of cover -1- and remove cover from instrument cluster.

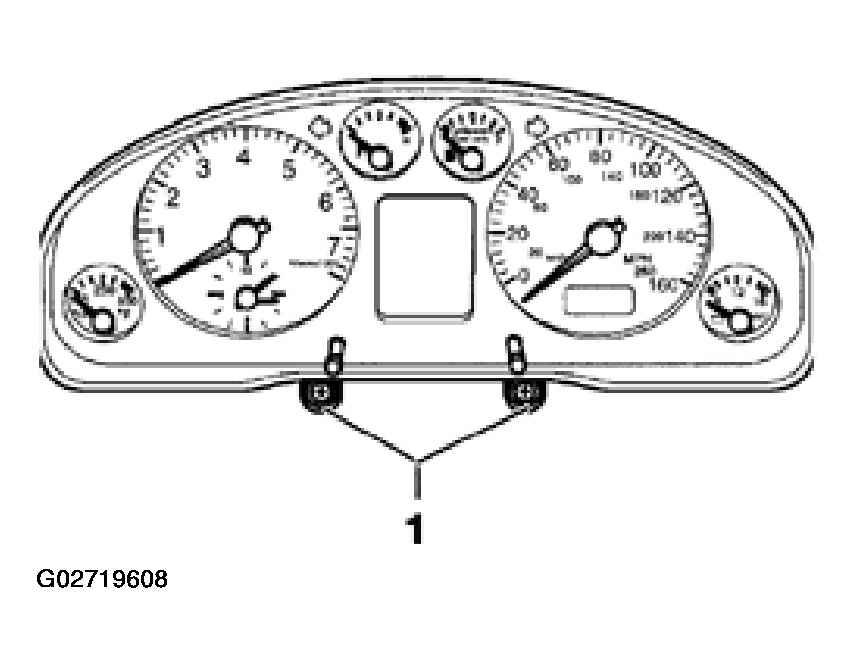

- Remove two screws -1-.
- Pull instrument cluster out of instrument panel.
- Cut cable ties on back of instrument cluster.
- Release retaining tabs on harness connectors and disconnect connector.
