Instrument cluster, removing and installing: Installing

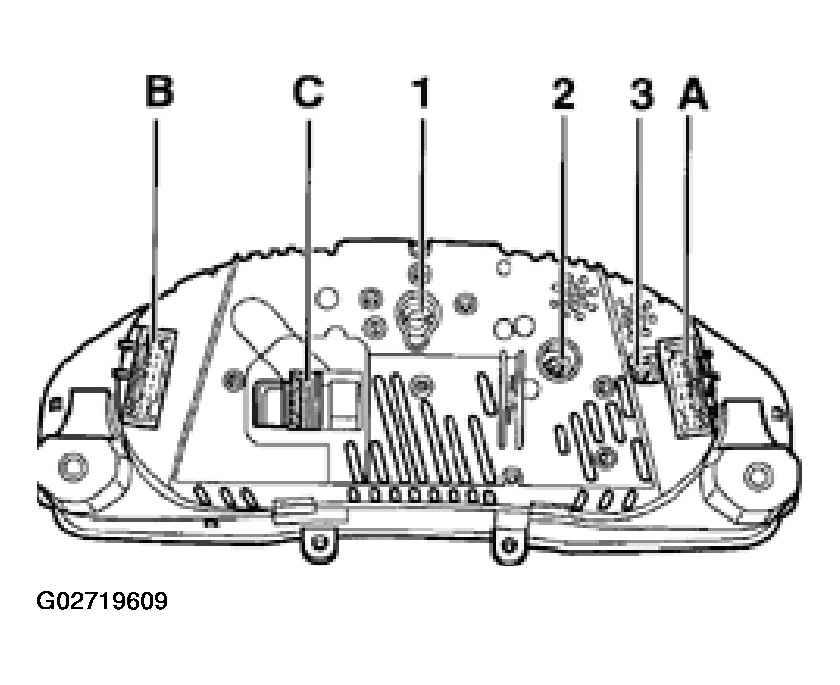

- Connect electrical connectors and insert wiring harness into clip on back of instrument cluster.
- Install instrument cluster in reverse order of removal.
- After installing, check operation.
- Code instrument cluster.
- Perform adaptation of SRI and odometer.
If OK:
IMPORTANT:
When replacing the instrument cluster, refer to notes. See INSTRUMENT CLUSTER, REMOVING AND INSTALLING
.
