Vehicles with front-wheel drive:

The sender for fuel gauge -G- is located under the floor covering of the luggage compartment.

• Remove floor covering.
• Remove screws (arrows) and remove cover -1-.
• Remove connector.

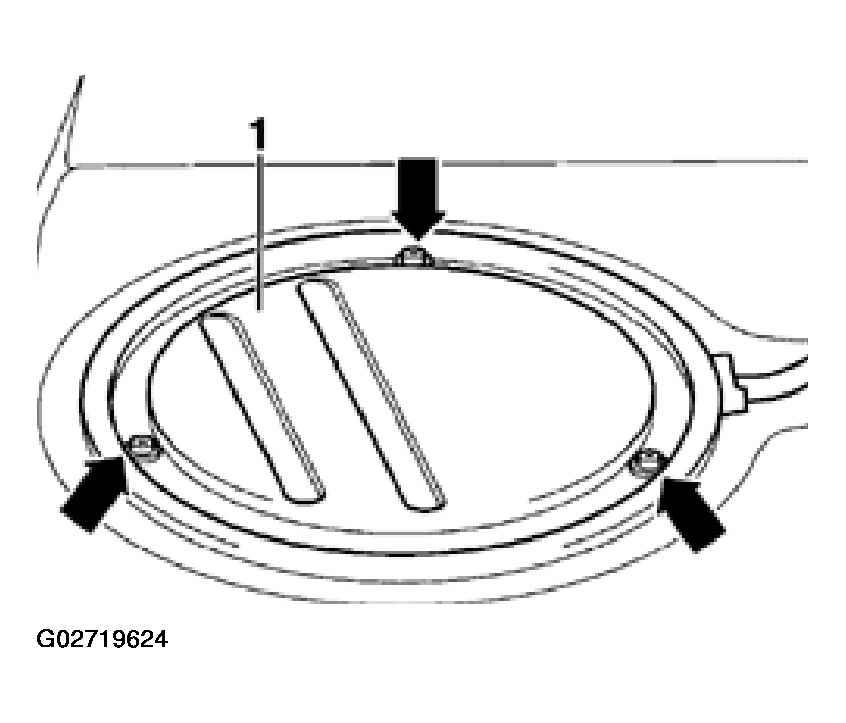

Fig 1: Removing Floor Cover Screws & Cover (Up To M.Y. 1999)
