Vehicles with all-wheel drive:

Vehicles with all-wheel drive have three fuel gauge senders connected in series.

One of the fuel gauge sender harness connectors is located under the floor covering in the luggage compartment. Removing connector. See CONNECTOR FOR SENDER FOR FUEL GAUGE -G-, TERMINAL ASSIGNMENTS  .

The other two fuel gauge sender connectors are located under the rear seat bench.

• Remove rear seat bench. See SEAT BENCH, REMOVING AND INSTALLING .
• Remove screws (arrows) and remove covers -1- and -2-.

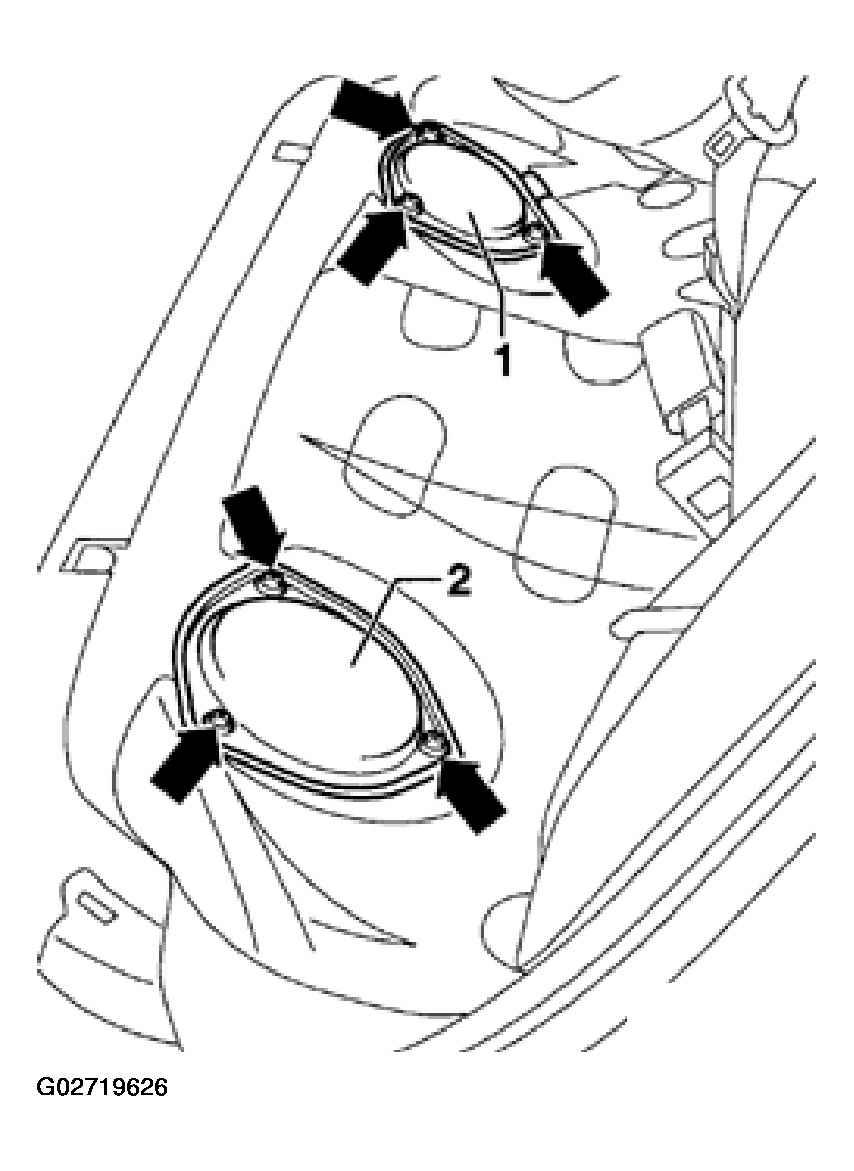

Fig 1: Removing Screws & Covers - Vehicles With All-Wheel Drive (Up To M.Y. 1999)

• Remove harness connectors.
