Highline-Instrument cluster

-A- Multi-pin connector, 32-pin, green

B Multi-pin connector, 32-pin, blue

C Multi-pin connector, 32-pin, gray

D Multi-pin connector for the broadcast clock, 4-pin, black (in USA not connected)

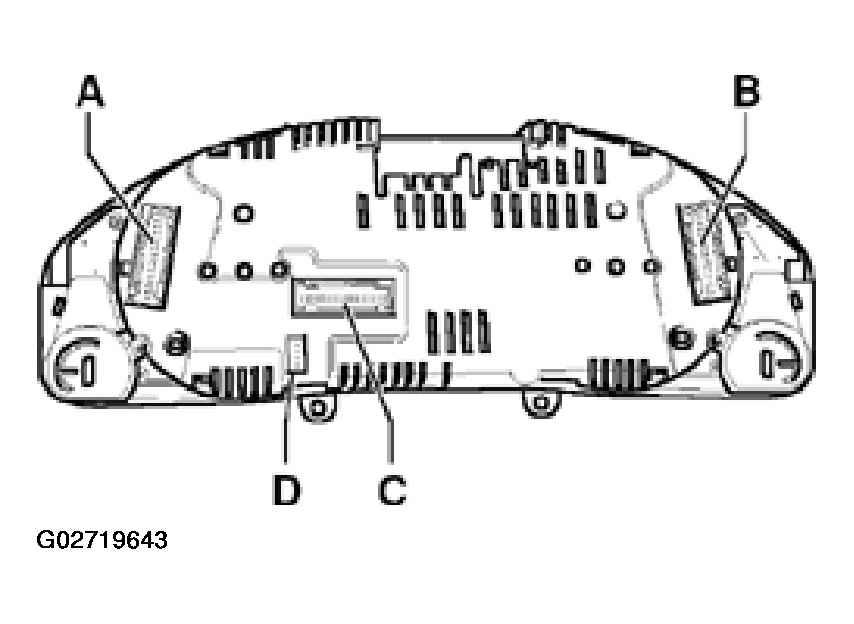

Fig 1: Identifying Highline-Instrument Cluster Harness Connectors (From M.Y. 2000 & Up)
G02719643
