Instrument cluster, removing and installing: Removing
- Using steering column adjustment, pull steering wheel out and down as far as it will go.

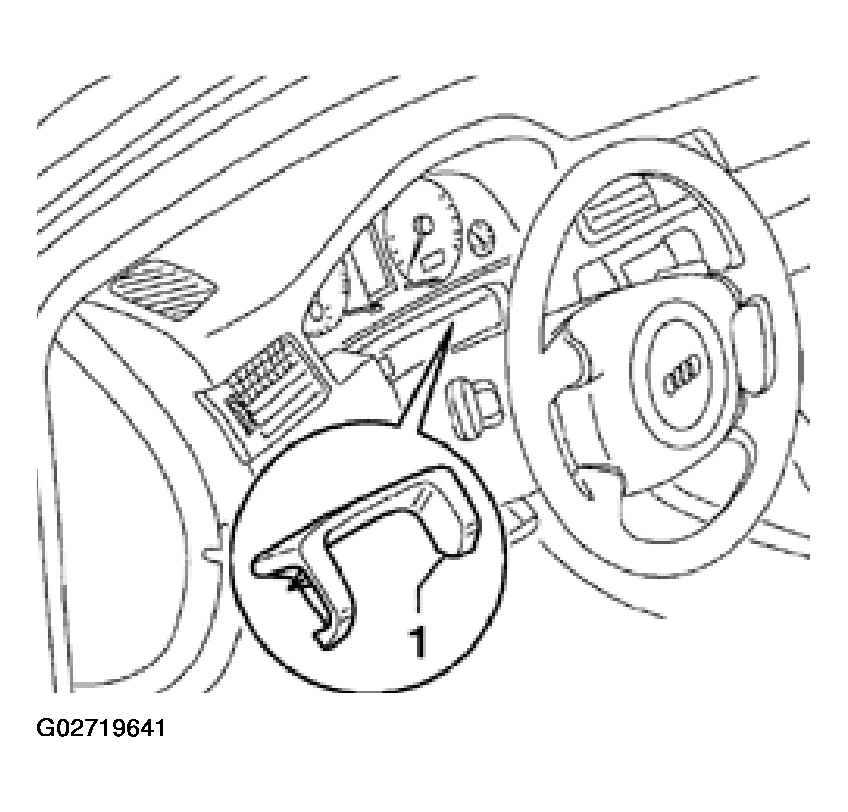

- Push up on side of cover -1- and remove cover from instrument cluster.

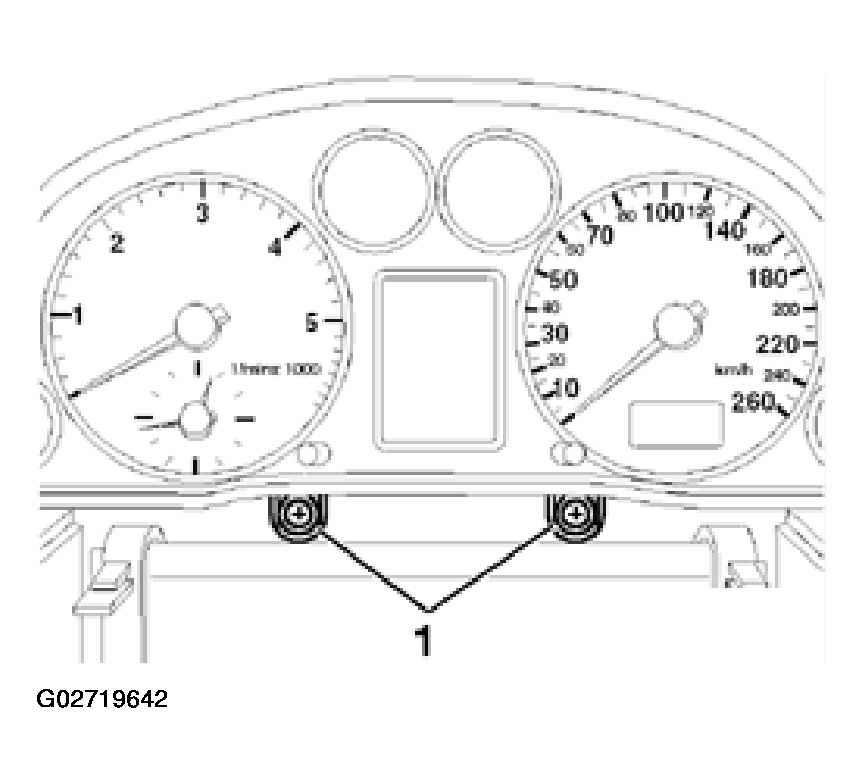

- Loosen both Phillips head screws -1-.
- Pull out the instrument cluster.
- Open the cable tie on the back side of the instrument cluster.
- Unlock safety latches from harness connectors and pull plugs.
