Multi plug connector, 32-pin, green

NOTE: The following list refers to Fig 1 and Fig 2 .
  1. not used
  2. Transponder
  3. not used
  4. not used
  5. W-wire
  6. not used
  7. Signal right
  8. External buzzer
  9. External chime
  10. Airbag
  11. Auxiliary heater
  12. Terminal 61
  13. Parking brake/BRAKE
  14. CHECK
  15. Oil level/Oil temperature
  16. not used

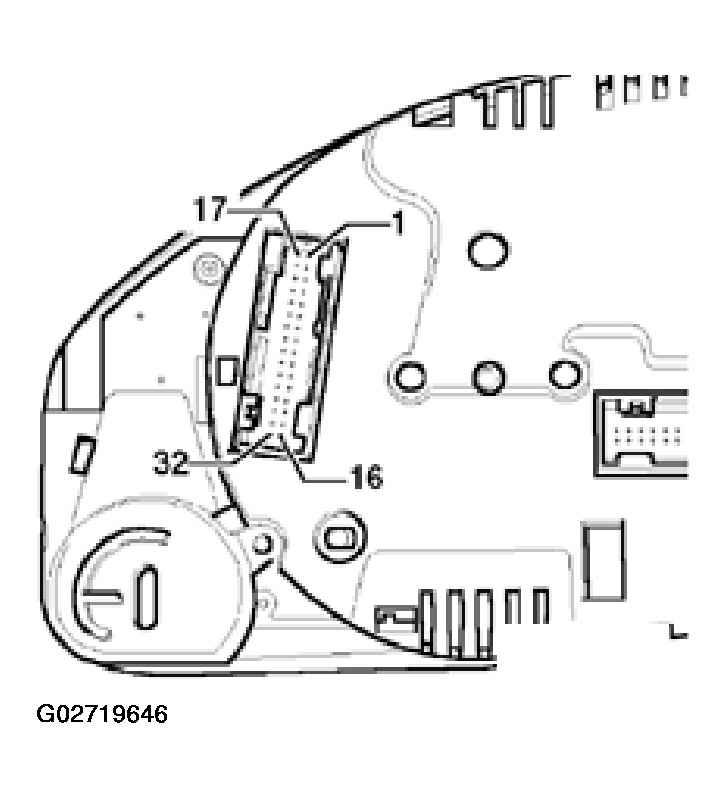

    17. Fig 1: Identifying Green 32-Pin Multi Plug Connector (From M.Y. 2000 & Up)
    G02719646
  17. Transponder 2
  18. CAN low speed (Drive) (high +)
  19. CAN low speed (Drive) (low -)
  20. CAN low speed (Drive) (screen)
  21. ABS
  22. CAN low speed (Comfort) (high +)
  23. CAN low speed (Comfort) (low -)
  24. CAN low speed (Comfort) (screen)
  25. Engine hood
  26. Gas tank door
  27. Seat belt lock
  28. K-wire
  29. Ambient temperature-input
  30. Terminal 58de (ext. Dimmer potentiometer)
  31. Selector scale display
  32. LWR

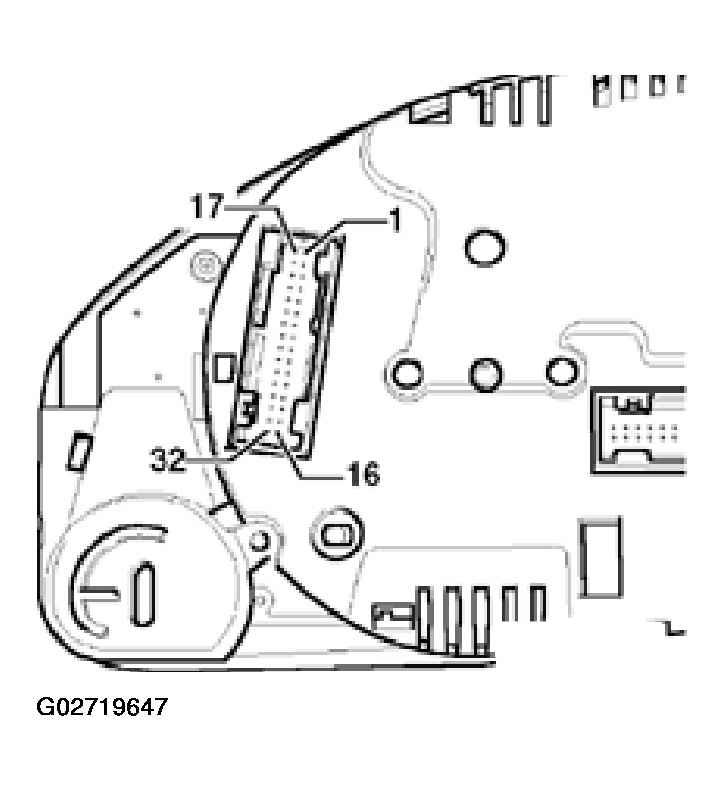

    33. Fig 2: Identifying Green 32-Pin Multi Plug Connector (From M.Y. 2000 & Up)
    G02719647
