Multi plug connector, 32-pin, gray (on VDO-vertically installed)

NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Switch for menu control (Menu)
  2. Switch for menu control (out A)
  3. Switch for menu control (out B)
  4. Switch for menu control (Enter)
  5. CAN high speed Display (high +)
  6. CAN high speed Display (low -)
  7. CAN high speed Display (screen)
  8. not used
  9. not used
  10. not used
  11. Enable
  12. Clock-
  13. Data-
  14. Brake light
  15. Wash water level
  16. Tail light/Low beam (Light control)
    17. Fig 1: Identifying Gray 32-Pin Multi Plug Connector (On VDO-Vertically Installed) (From M.Y. 2000 & Up)
    G02719648
  17. On board computer left
  18. On board computer right
  19. On board computer reset
  20. Remote control input for auxiliary heater
  21. Summer/Winter Switch
  22. Auxiliary heater on
  23. Push button branch 1 Navigation
  24. Push button branch 2 Navigation
  25. Push button branch Telematik
  26. not used
  27. not used
  28. not used
  29. not used
  30. not used
  31. not used
  32. not used

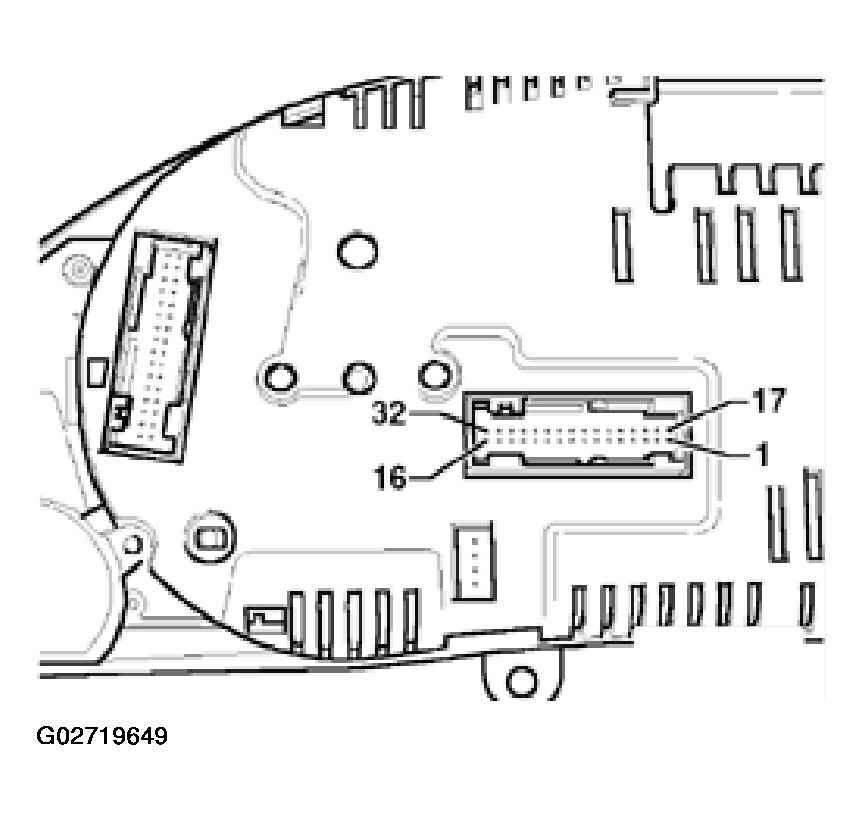

    33. Fig 2: Identifying Gray 32-Pin Multi Plug Connector (On VDO-Vertically Installed) (From M.Y. 2000 & Up)
    G02719649
