Multi plug connector, 32-pin, blue

NOTE: The following list refers to Fig 1 and Fig 2 .
  1. Terminal 15
  2. Break pad wear
  3. Speedometer output 1
  4. not used
  5. Tank sensor
  6. Tank warning OBD 2
  7. Terminal 31 (Sensor ground)
  8. Coolant temperature
  9. Terminal 31 (Load ground)
  10. Oil pressure 2 (high)
  11. RPM signal
  12. A/C disconnect
  13. E-Gas/Preheat control
  14. Level regulator
  15. Terminal 58d
  16. Trailer signal
    17. Fig 1: Identifying 32-Pin Multi Plug Connector, Blue (From M.Y. 2000 & Up)
    G02719644
  17. High beam
  18. Signal left
  19. not used
  20. Terminal 58s
  21. Driver door contact switch
  22. Low coolant
  23. Terminal 30
  24. Terminal 31 (Load ground)
  25. Consumption signal
  26. Parking light right
  27. Parking light left
  28. Speedometer input
  29. Brake
  30. S-Terminal
  31. Speedometer output 2
  32. ESP/ASR

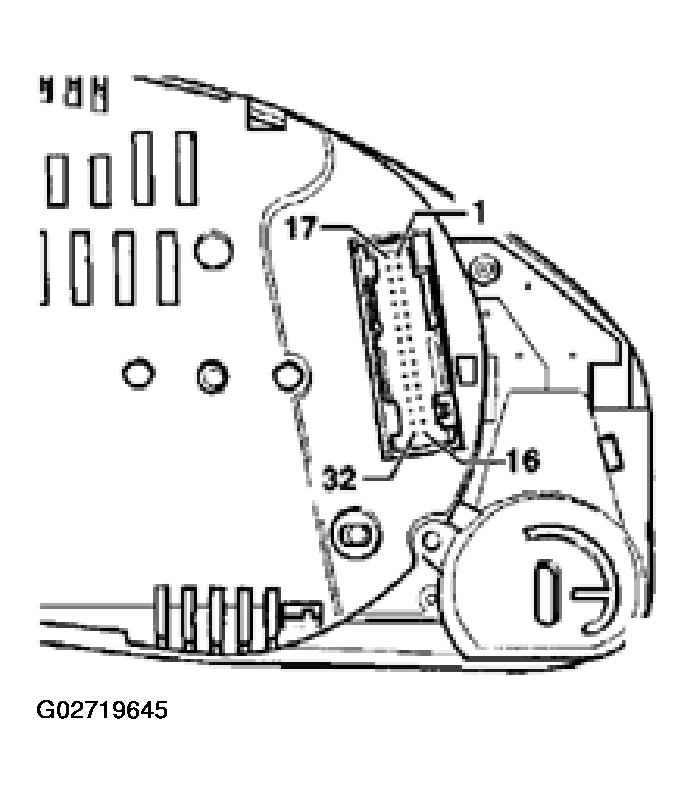

    33. Fig 2: Identifying 32-Pin Multi Plug Connector, Blue (From M.Y. 2000 & Up)
    G02719645
