Door lock, removing and installing
- Remove door trim panel.
- Run door window up to top position.
- Disconnect harness connector for central locking at door lock.
NOTE:

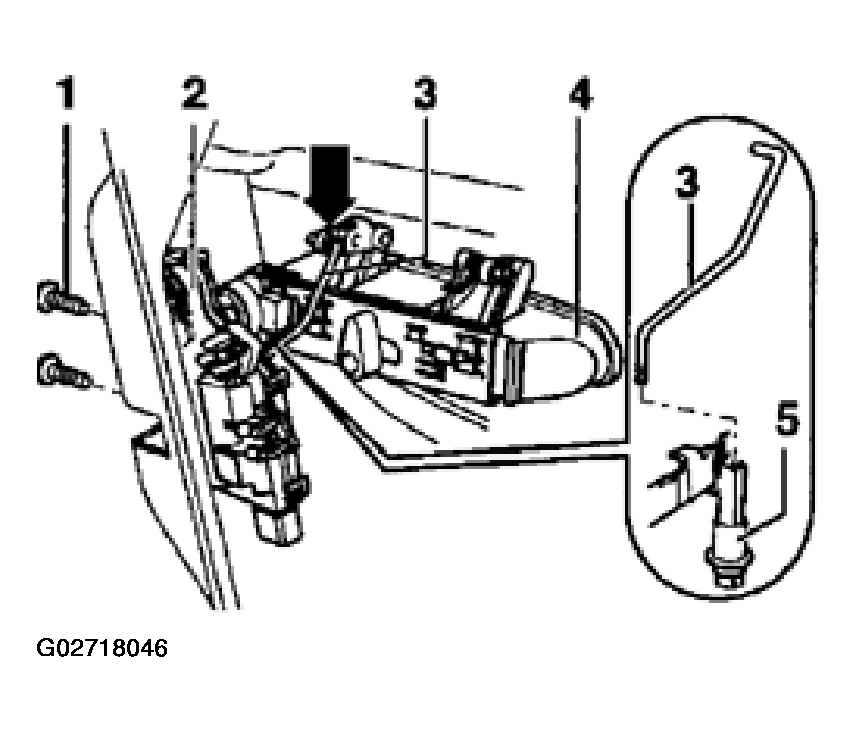

- When reinstalling the door lock, disengage operating rod -3- at the clip of the fulcrum lever (arrow).
- When installing a new door lock, disengage operating rod -3- at sliding sleeve -5-.
- Disengage operating rod -3-.
- Remove combination bolts -1- and remove door lock -2- in downward direction, between door component carrier and front door shell.
- Install in reverse order of removal.
