Upper C/D-pillar trim, removing and installing

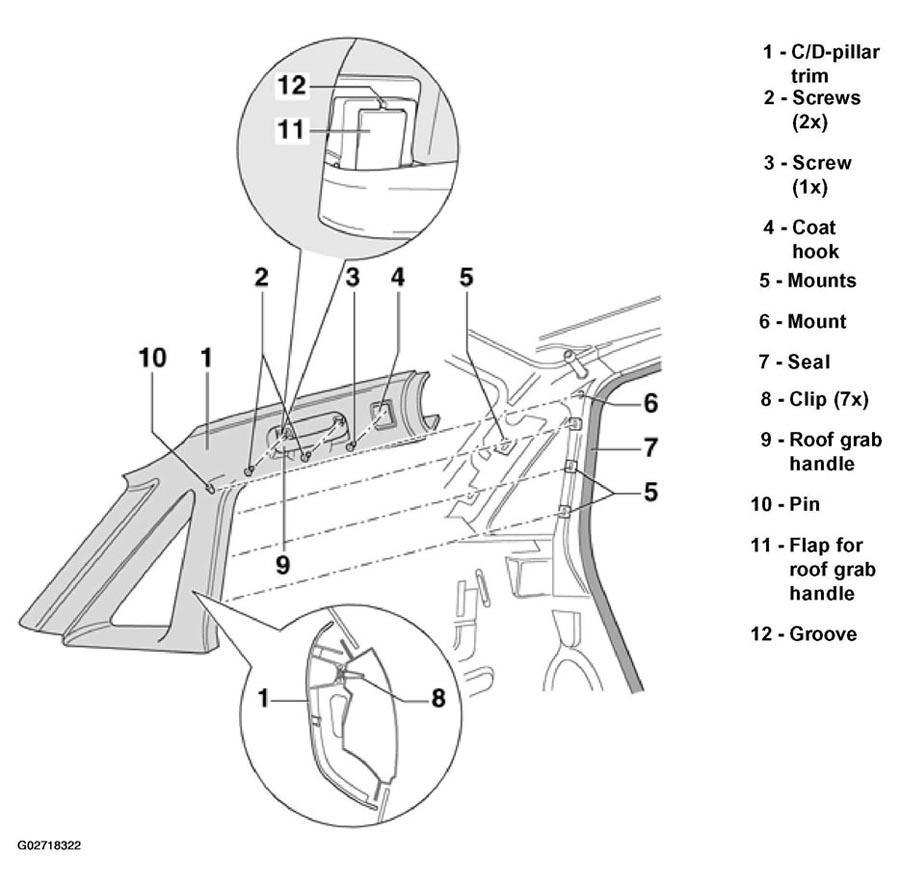

The following list pertains to Fig 1.
- C/D-pillar trim
Removing
- Open out coat hook and remove screw -3-.
- Pivot down flap -11- on roof grab handle -9- at groove -12-.
Roof grab handle can be secured in the 'down' position by opening flap -11- fully.
- Remove screws -2- (2x)
- Unclip C/D-pillar trim -1-, starting at top.
Installing
- Insert trim -1- in rearshelf mounts.
- Insert pin -10- on trim -1- in mount -6-.
- Insert clips -8- (7x) on trim -1- in mounts -5-.
- Clip trim -1- into place.
- Screws (2x)
- Screw (1x)
- Coat hook
- Mounts
- Mount
- Seal
- After installing make sure seal is correctly seated
- Clip (7x)
- Roof grab handle
- Pin
- Flap for roof grab handle
- Groove
