Impact absorber, removing and installing

• Remove bumper.
• Remove bolts -2-.
• Remove nut -3- and pull out impact absorber -1- from long member.

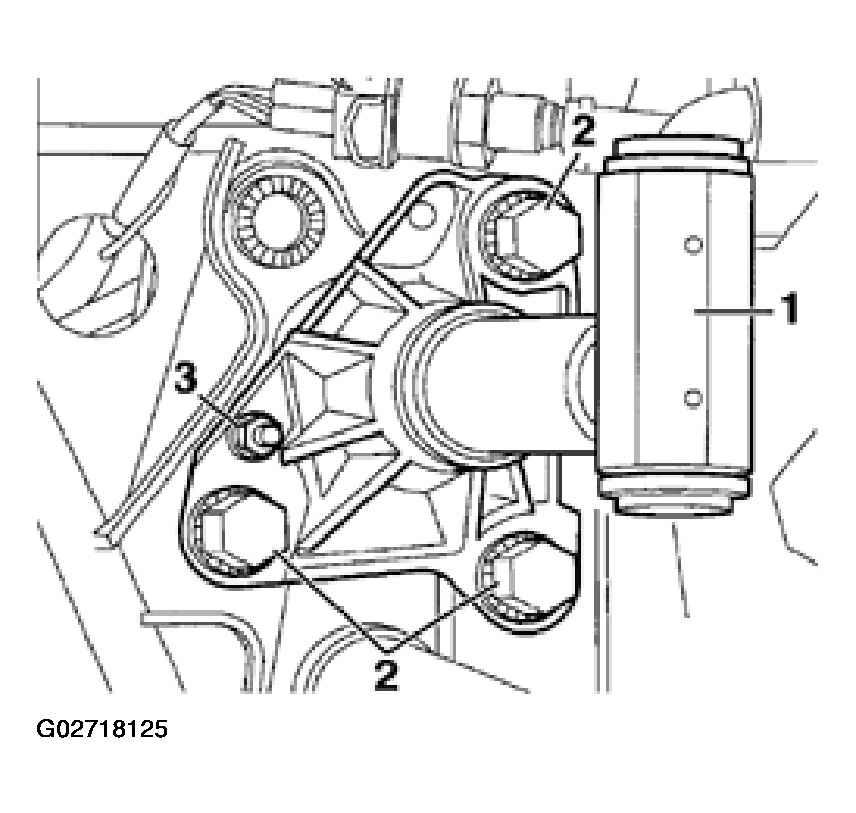

Fig 1: Removing Impact Absorber

Courtesy of AUDI OF AMERICA, INC.

When installing:

• Bolts -2- tightening torque: 50 Nm (37 ft lb)
• Nut -3- tightening torque: 4 Nm (35 in. lb)
