Crossmember, removing and installing

• Remove bumper.
• Remove Torx® screws (arrows) (10x) and remove crossmember.

NOTE: For vehicles with the headlight washer system, remove only one spray jet.

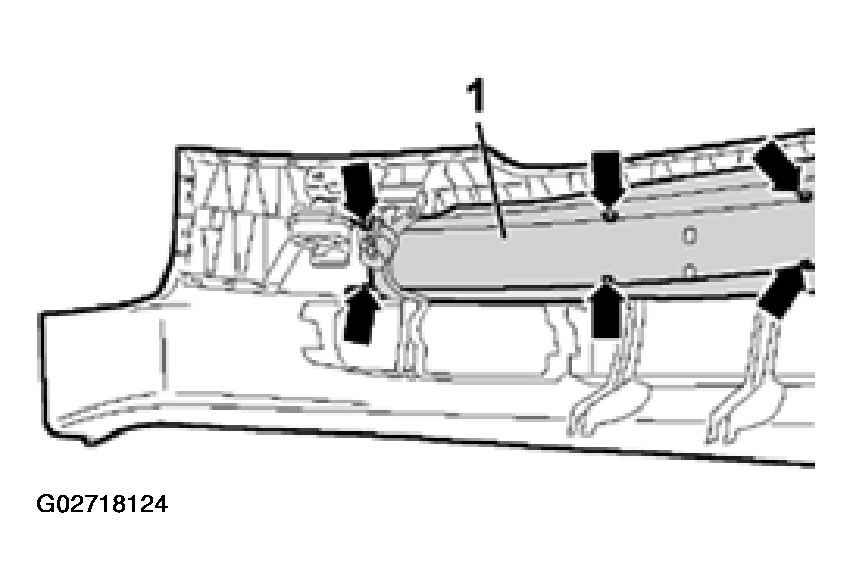

Fig 1: Removing Crossmember

Courtesy of AUDI OF AMERICA, INC.
