High intensity gas discharge (Xenon) headlights (up to m.y. 1999), overview
WARNING:
HIGH VOLTAGE!
Before working on components marked with yellow high voltage symbols, disconnect the battery.
Before working on components marked with yellow high voltage symbols, disconnect the battery.
CAUTION:
Before working on the electrical system:
- Determine the correct coding for the anti-theft radio.
- Disconnect the battery Ground (GND) strap.
NOTE:
Check headlight adjustment after working on the headlight system. See HEADLIGHTS, ADJUSTING
.
NOTE:

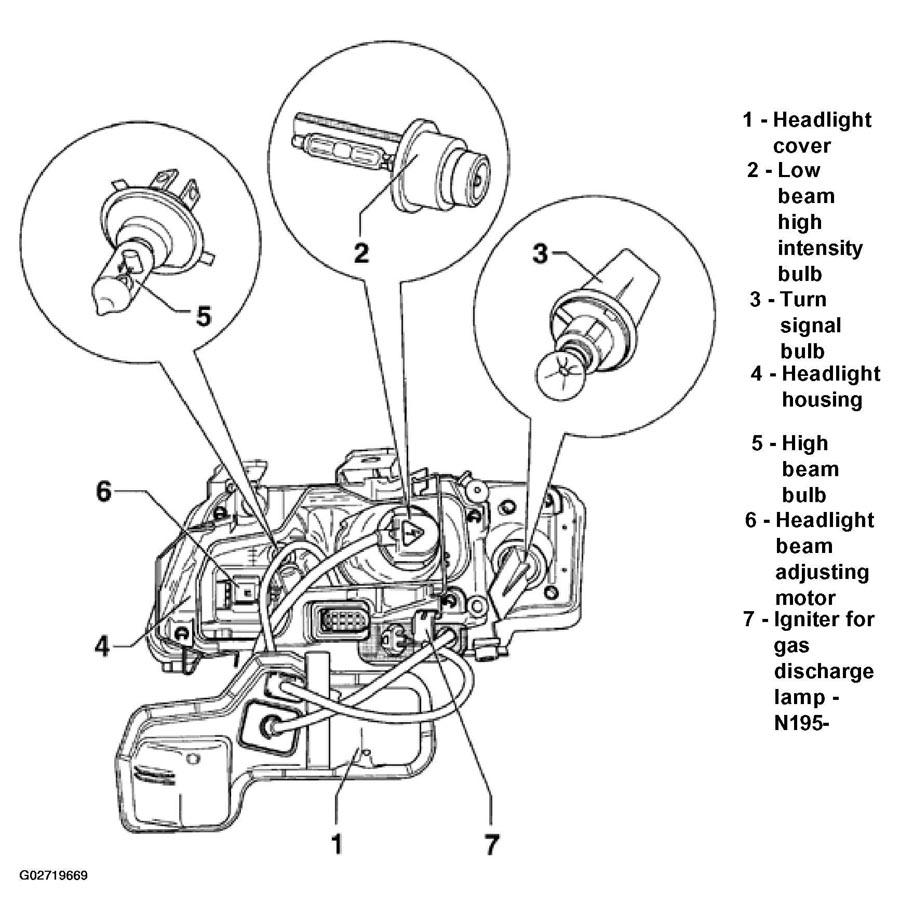

The following list refers to Fig 1
.
- Headlight cover
- Low beam high intensity bulb
- 12 V, 35 W
- Changing bulb. See Low beam bulb (high intensity gas discharge lamp), replacing .
- Turn signal bulb
- 12 V, 21 W
- Amber color
- Changing bulb. See Turn signal light bulb, removing and installing .
- Headlight housing
- High beam bulb
- H7 - 12 V, 55 W
- Changing bulb. See High beam bulb, removing and installing .
- Headlight beam adjusting motor
- Removing and installing. See HEADLIGHT BEAM ADJUSTING MOTORS -V48- AND -V49-, REMOVING AND INSTALLING .
- Igniter for gas discharge lamp -N195-
- Removing and installing. See Igniter for gas discharge lamp -N195-, removing and installing .
