Tail lights, servicing: Overview

NOTE: The following list refers to Fig 1 .

Seal
- Replace if damaged
Turn signal bulb
- Left: -M6-
- Right: -M8-
- 12 V, 21 W
Backup light bulb
- Left: -M16-
- Right: -M17-
- 12 V, 21 W
Lens
Tail light/brake light bulb
- Left: -M4-, -M9-
- Right: -M2-, -M10-
- 12 V, 21/5 W
Bulb carrier
- Removing, installing. See BULB CARRIER, REMOVING AND INSTALLING .
Body
Spacers
Nuts
- 4 Nm (35 in. lb)

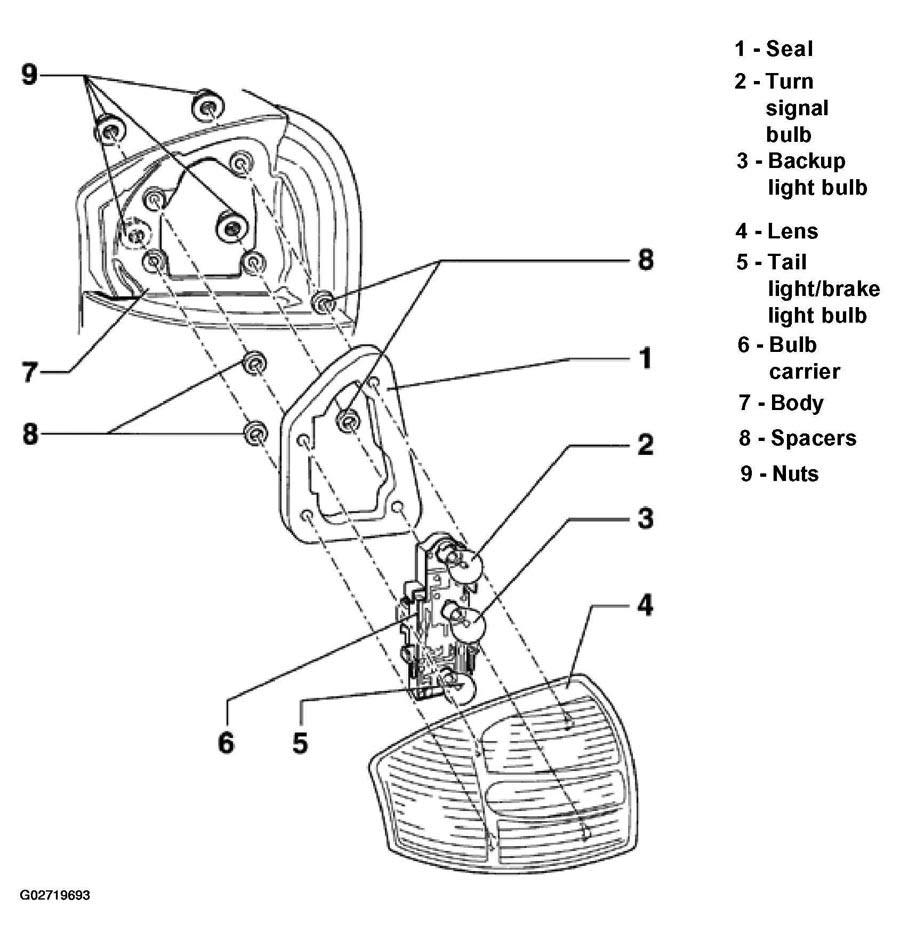

Fig 1: Overview Of Tail Light Assembly

NOTE: The lamp housing for the Sedan and Avant are different shapes.
