Wiring connections on steering column switch: Notes

NOTE: The following list refers to Fig 1 .
  1. Connector for windshield wiper switch
  2. Connector for on-board computer and intermittent wiper function
  3. Connector for cruise control system
  4. Connector for turn signal switch

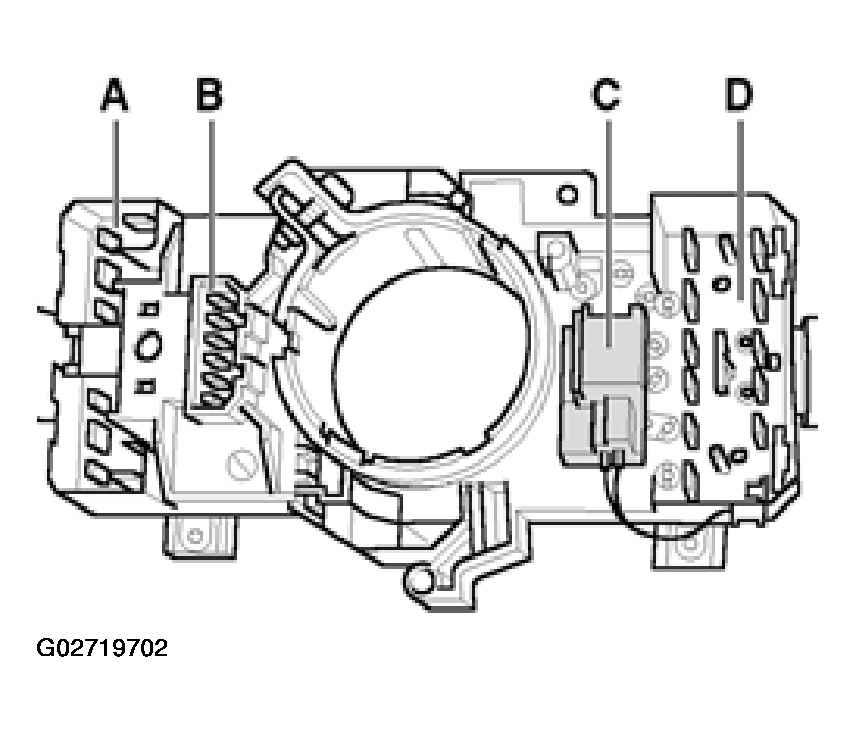

    5. Fig 1: Identifying Wiring Connections On Steering Column Switch
    G02719702
