Identification of connector for windshield wiper switch -A-

NOTE: The following list refers to Fig 1 .
  1. Terminal 53a
  2. Intermittent wiping
  3. Terminal 53 b
  4. Rear window wiper
  5. Terminal 53c
  6. Terminal 53
  7. Terminal 31
  8. Terminal 53

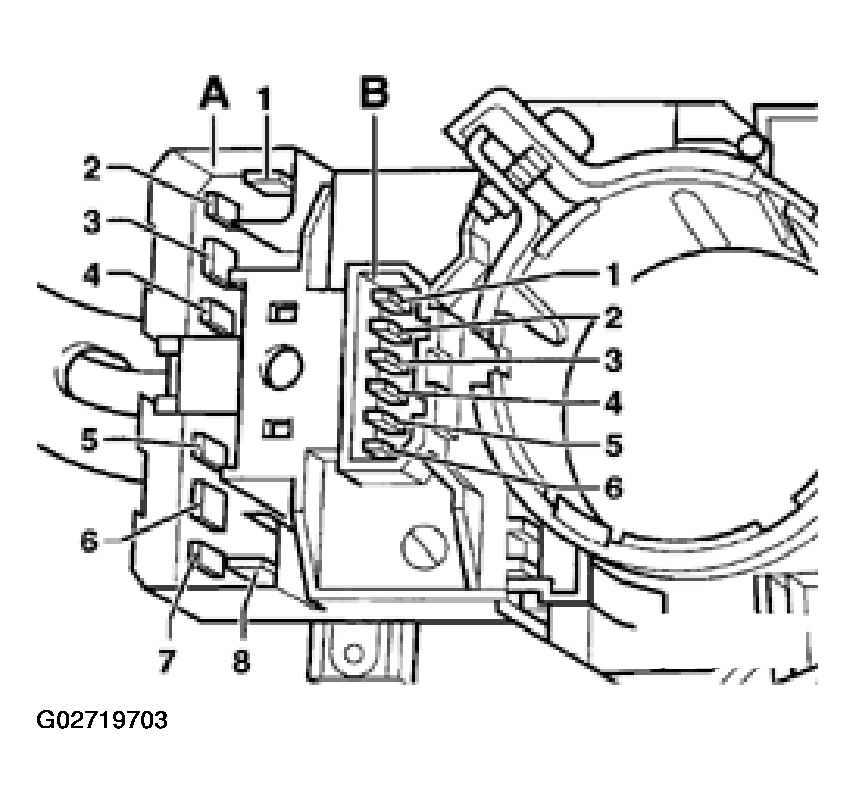

    9. Fig 1: Identification Of Connector Pins For Windshield Wiper Switch
    G02719703
