Identification of connector for turn signal switch -D-

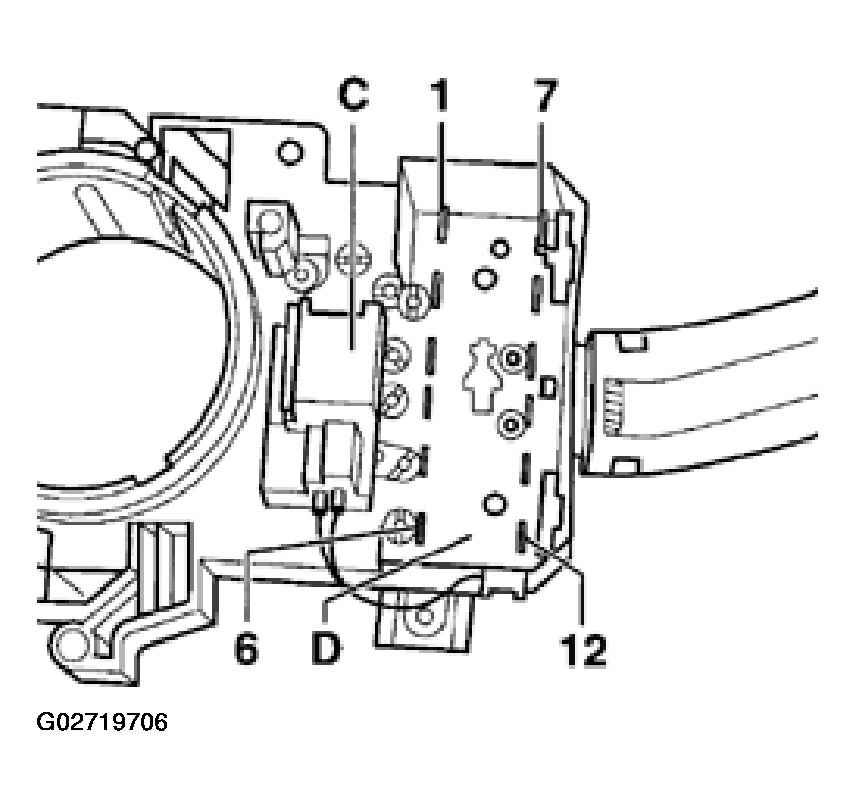

NOTE: The following list refers to Fig 1 .
  1. Terminal 56
  2. Terminal 56b
  3. Terminal PL
  4. Terminal PR
  5. Terminal R
  6. Terminal 56a
  7. Terminal 30
  8. Terminal 30
  9. Terminal L
  10. Terminal P
  11. Terminal 49a
  12. Terminal 71
    13. Fig 1: Identification Of Connector Pins For Turn Signal Switch
    G02719706
