Identification of connector for on-board computer -B-

NOTE: The following list refers to Fig 1 .
  1. On-board computer rocker switch: right
  2. On-board computer rocker switch: left
  3. Terminal 31
  4. On-board computer: reset
  5. Intermittent wipe relay
  6. Terminal 31

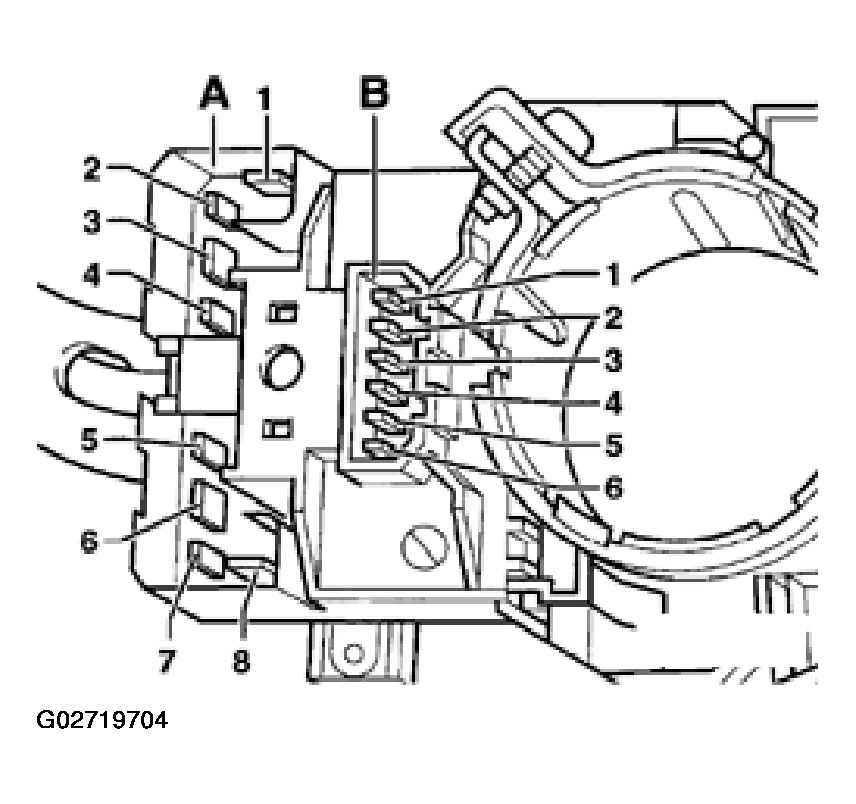

    7. Fig 1: Identification Of Connector Pins For On-Board Computer
    G02719704
