Identification of connector for cruise control system -C-

NOTE: The following list refers to Fig 1 .
  1. 2- Cruise control control module -J213-, terminal 10
  2. 3- Cruise control control module -J213-, terminal 4
  3. 4- Brake light switch
  4. 5- Clutch pedal/brake pedal vent valve
  5. 6- Terminal 15
  6. 7- Cruise control control module -J213-, terminal 8

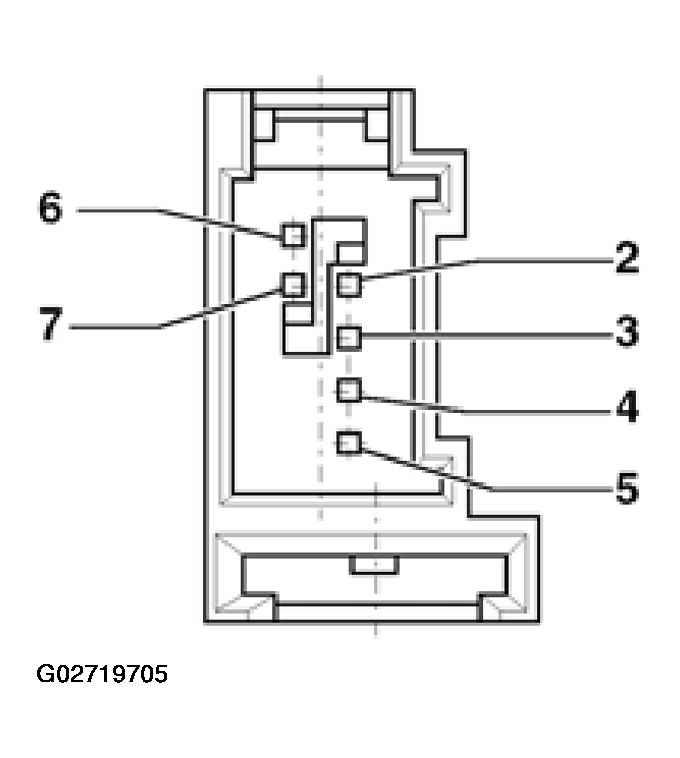

    7. Fig 1: Identification Of Connector Pins For Cruise Control System
    G02719705
