Removing (vehicles without trailer hitch): Notes

• Remove bumper.

See FRONT BUMPER, REMOVING, INSTALLING AND ASSEMBLY OVERVIEW .

• Disconnect the harness connector -1- from sensor.
• Push both locks sideways (arrow).

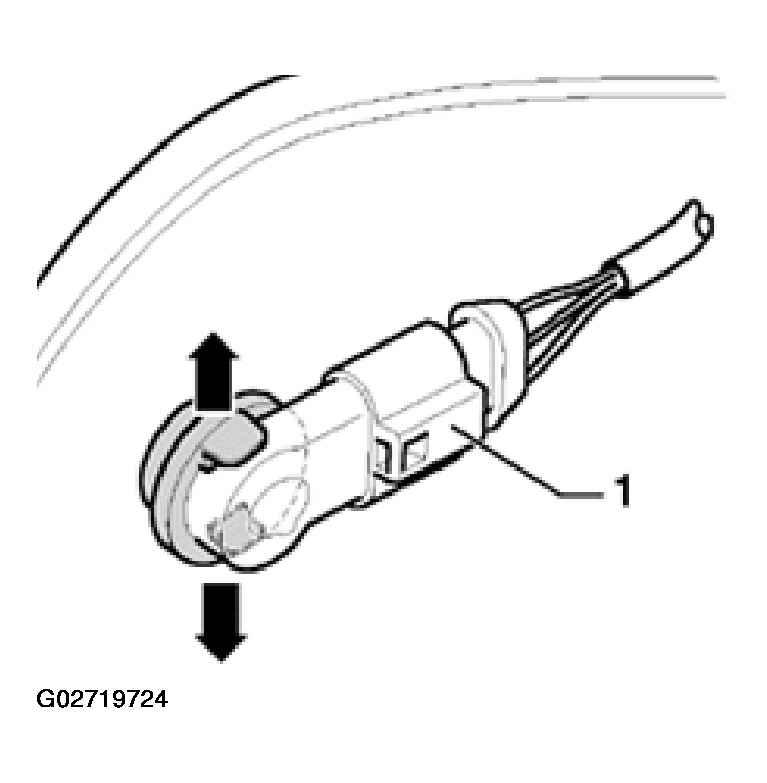

Fig 1: Locating Parking Aid Sensor (Vehicles Without Trailer Hitch)

• Push the sensor from outside inward.
• Remove the ultrasound sensor from inside.
