Ignition/starter switch -D-, removing and installing: Removing

Remove steering column switches.

See STEERING COLUMN, REMOVING AND INSTALLING .

Disconnect electrical connector -1- at ignition/starter switch -2-. See Fig 1 .
Remove sealing paint from two retaining screws -A-.
Slightly loosen retaining screws -A-.
Pull ignition/starter switch -2- out of steering lock housing -3-, in direction of arrow.

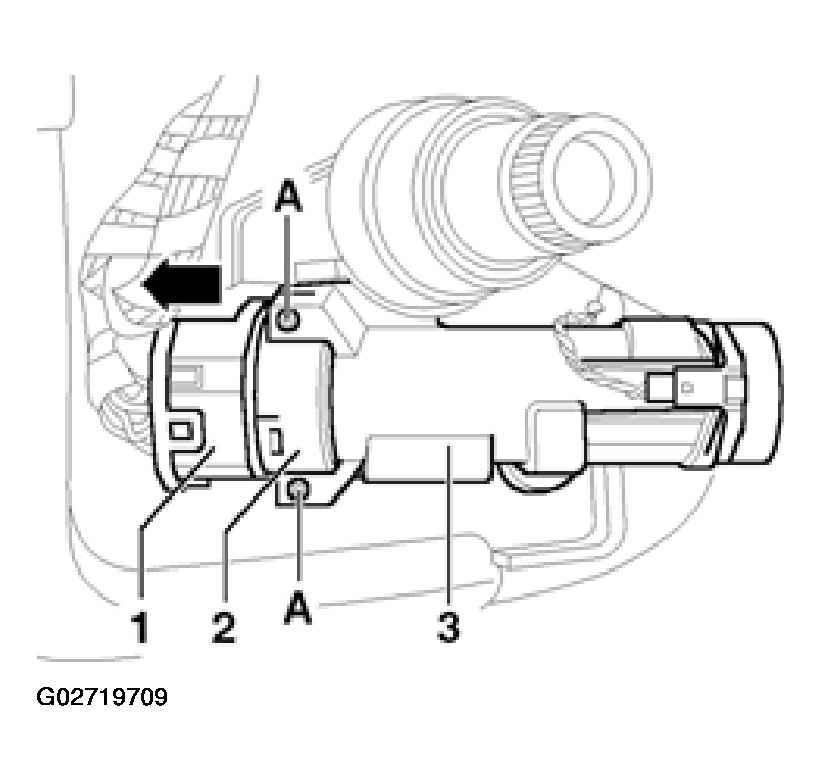

Fig 1: Pulling Ignition/Starter Switch Out Of Steering Lock Housing

G02719709
