Step motor for headlight adjustment, removing and installing: Removing
- Pull off the air intake channel at the rear of the right head light.
- Remove housing cover from head light housing.

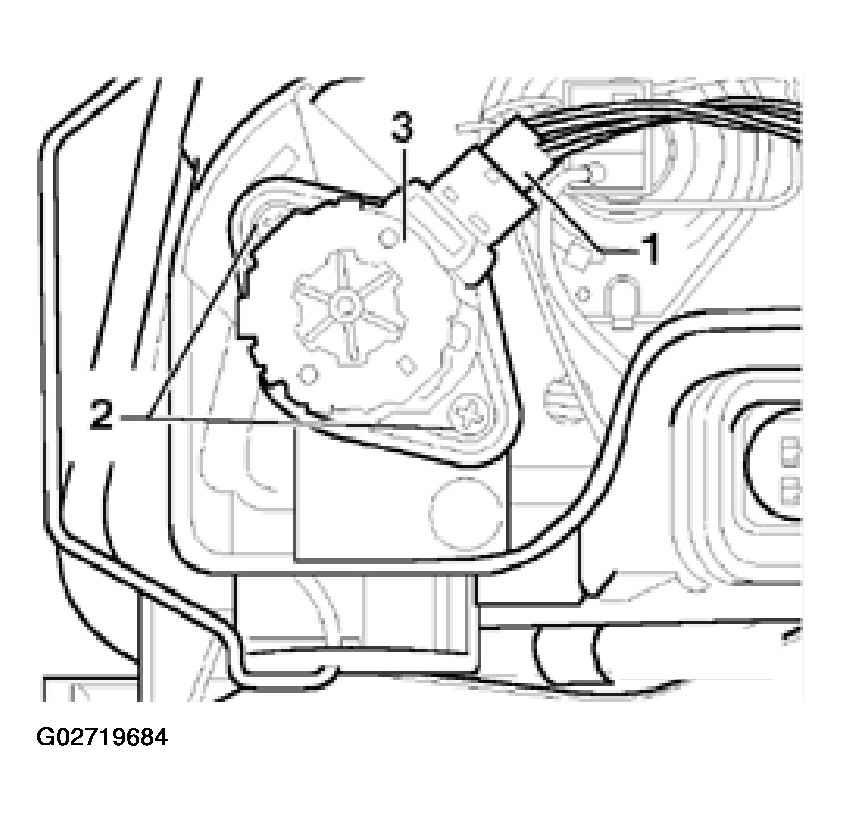

- Disconnect electrical harness connector -1-.
- Loosen both Phillips head screws -2-.
- Remove ball head of adjusting axle by sliding to side from ball head mount.
- Remove the step motor -3- from the housing.
