High intensity gas discharge (Xenon) headlights, overview (dynamic headlight adjustment) (from m.y. 2000 and up)

WARNING: HIGH VOLTAGE! Before working on components marked with yellow high voltage symbols, disconnect the battery.

NOTE:

Obtain radio code before disconnecting battery.
Be sure to activate vehicle features (radio, clock, electric window regulator, engine) according to owner's manual when the battery is re-connected.

NOTE: The following list refers to Fig 1 .

Housing cover
Headlight housing
Step motor for headlight adjustment (Step motor)
- Removing and installing. See STEP MOTOR FOR HEADLIGHT ADJUSTMENT, REMOVING AND INSTALLING .
Bulb for high beam
- H1 - 12 V, 55 W
- Changing bulb. See HIGH BEAM BULB, REMOVING AND INSTALLING .
Gas discharge lamp
- 12 V, 35 W
- Removing and installing. See LOW BEAM BULB (HIGH INTENSITY GAS DISCHARGE LAMP), REPLACING .
Turn signal bulb/parking light
- 12 V, 21/5 W orange
- Changing bulb. See HEADLIGHT BEAM ADJUSTING MOTORS -V48- AND -V49-, REMOVING AND INSTALLING .
Igniter for gas discharge lamps -N195-
- Removing and installing. See IGNITER FOR GAS DISCHARGE LAMP -N195-, REMOVING AND INSTALLING .

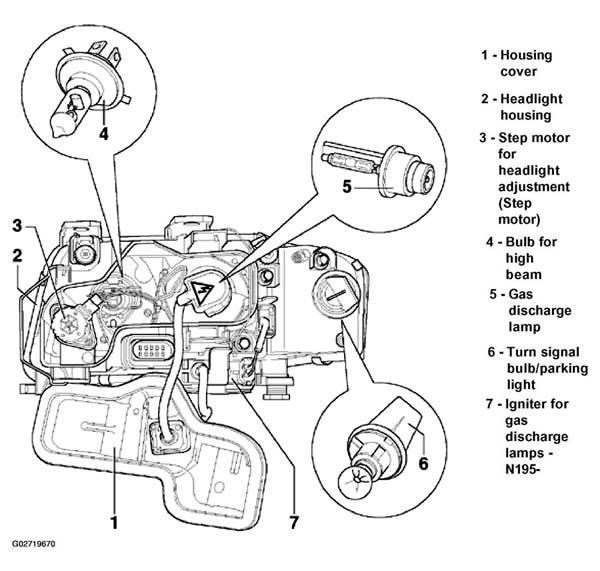

Fig 1: Overview Of High Intensity Gas Discharge (Xenon) Headlight Assembly - Dynamic Headlight Adjustment (From M.Y. 2000 & Up)

NOTE: After service repair, readjust the head lights.
