Headlights, removing and installing: Removing
- Remove bumper. See FRONT BUMPER, REMOVING, INSTALLING AND ASSEMBLY OVERVIEW .

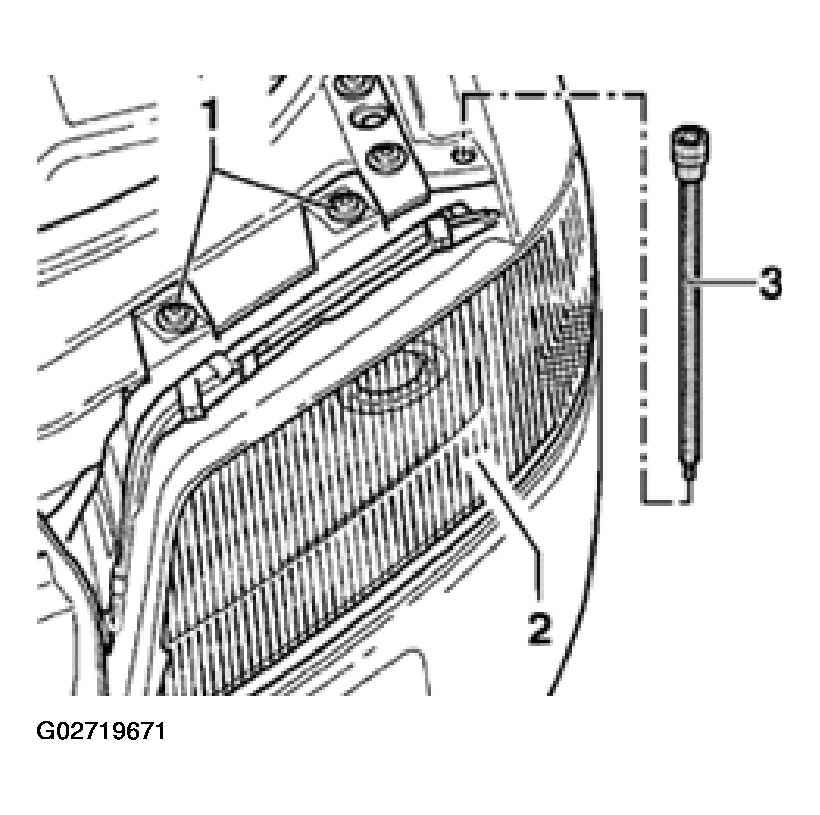

- Remove two Torx(R) bolts -1- (T30).
- Tightening torque: 6 Nm (53 in. lb)
- Remove inner Torx(R) bolt (T30) using 200 mm (8 in.) extension.
- Tightening torque: 6 Nm (53 in. lb)
- Loosen bolt using 3249 hex ball socket -3-.
- Disconnect headlight multi-pin connectors.
- Rotate headlight -2- toward center of vehicle and remove headlight.
