Headlights, removing and installing: Installing

Measure distance -a- at plastic bolt of old headlight. (Important)
Adjust distance -a- at plastic bolt on new headlight.

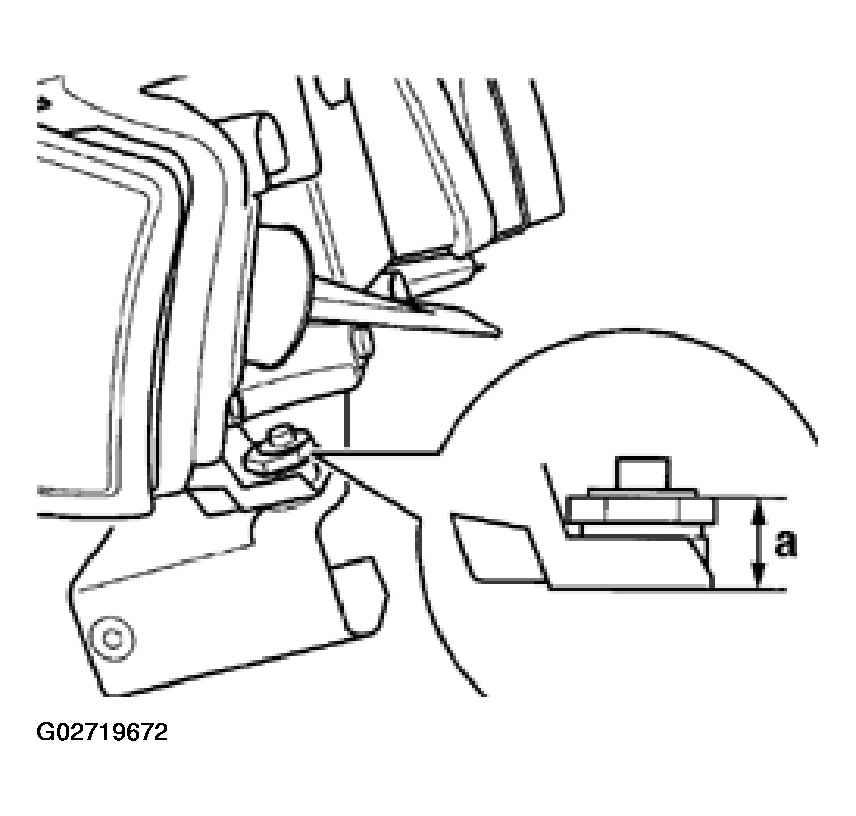

Fig 1: Measuring Distance -a- At Plastic Bolt Of Old Headlight

G02719672

To install headlight, first engage lug -1- in guide -2-.

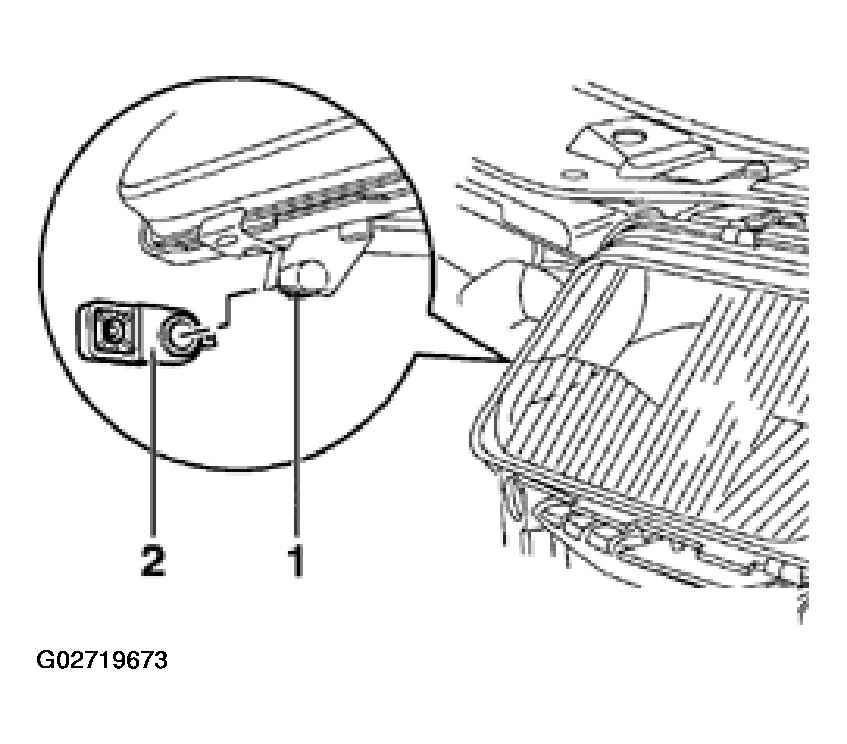

Fig 2: Engaging Lug In Guide

G02719673

Install in reverse order of removal.
Position headlight to maintain even spacing relative to body panels.
After headlight is installed, adjust headlights. See HEADLIGHTS, ADJUSTING .
