Low beam bulb (halogen headlight), replacing
>>
Removing
Low beam bulb (halogen headlight), replacing: Removing
For right headlight, remove rear part of air intake duct.
Remove cover from headlight housing.
Remove connector -2- for low beam bulb.
Remove wire clamp -1- and take bulb out of housing.

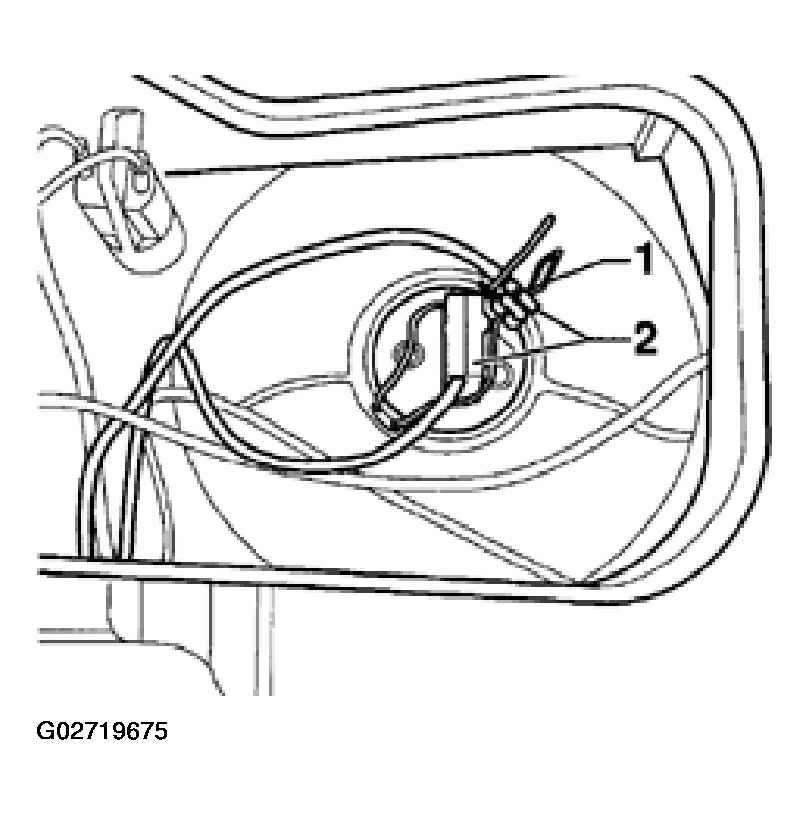

Fig 1: Removing Low Beam Bulb (Halogen Headlight)
