Igniter for gas discharge lamp -N195-, removing and installing: Removing

Remove cover for headlight housing.
Disconnect electrical connector -1- for gas discharge bulb-by turning it counterclockwise.

Fig 1: Disconnecting Electrical Connector For Gas Discharge Bulb

G02719678

Loosen grommet -1- in headlight cover by pushing down on lugs, (arrows).

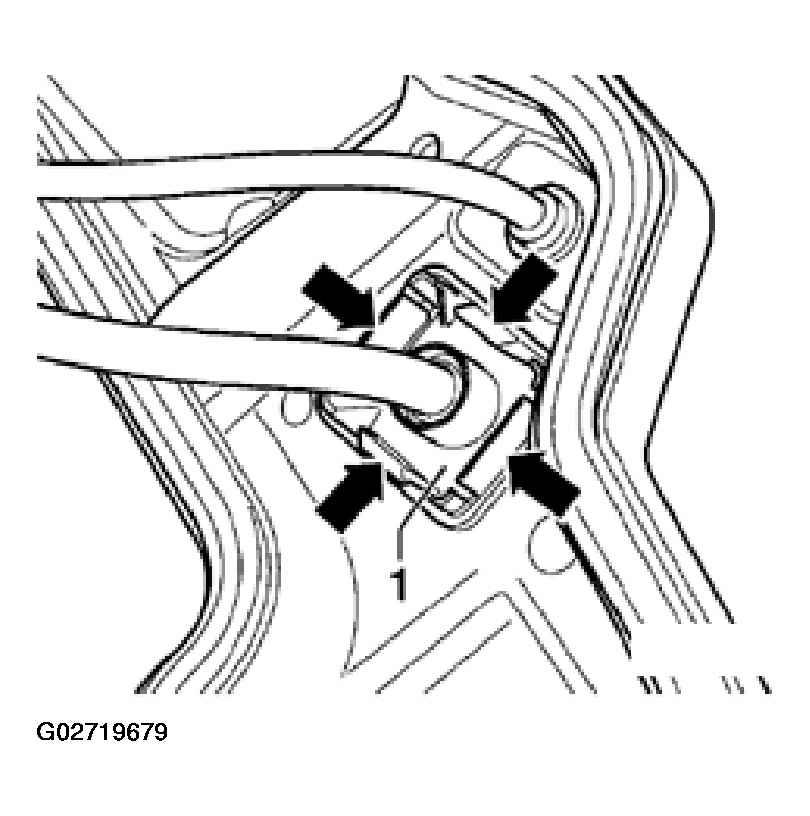

Fig 2: Loosening Grommet In Headlight Cover By Pushing Down On Lugs

G02719679

Now guide connector for gas discharge bulb through opening of cover.
Disconnect electrical connector -1- from igniter for high intensity gas discharge lamp.
Remove bracket -2- for igniter by removing screw (arrow).

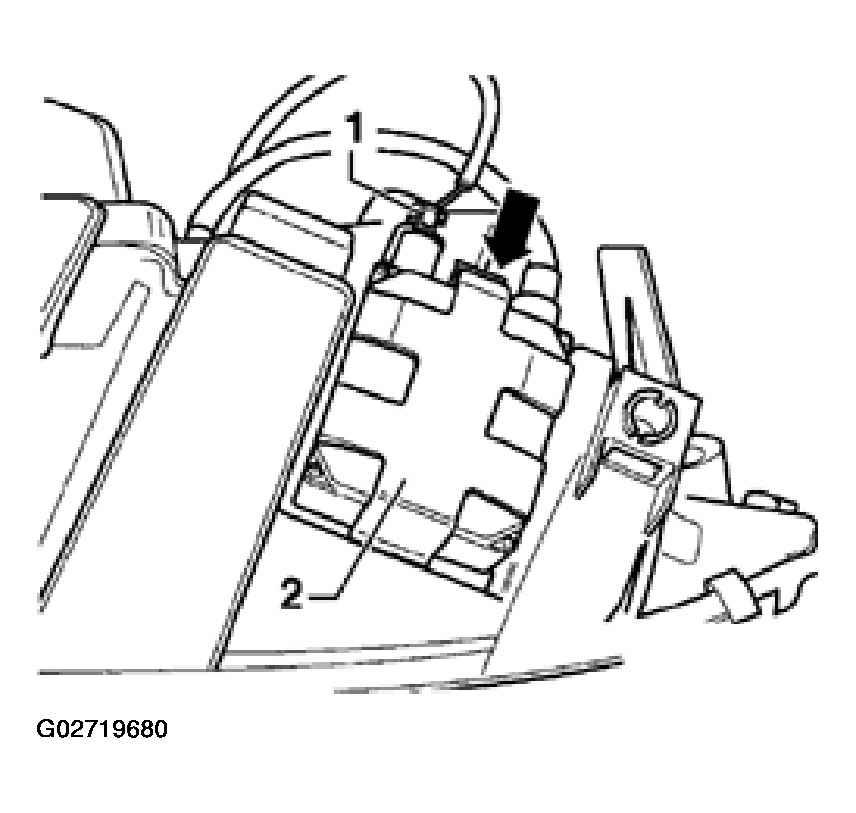

Fig 3: Disconnecting Electrical Connector From Igniter For High Intensity Gas Discharge Lamp

G02719680

Remove igniter from housing.
