High beam bulb, removing and installing: Removing

For right headlight, remove rear part of air intake duct.
Remove cover from headlight housing.
Disconnect connector -1-. See Fig 1 .
Disengage wire clamp -2- and remove bulb from housing.

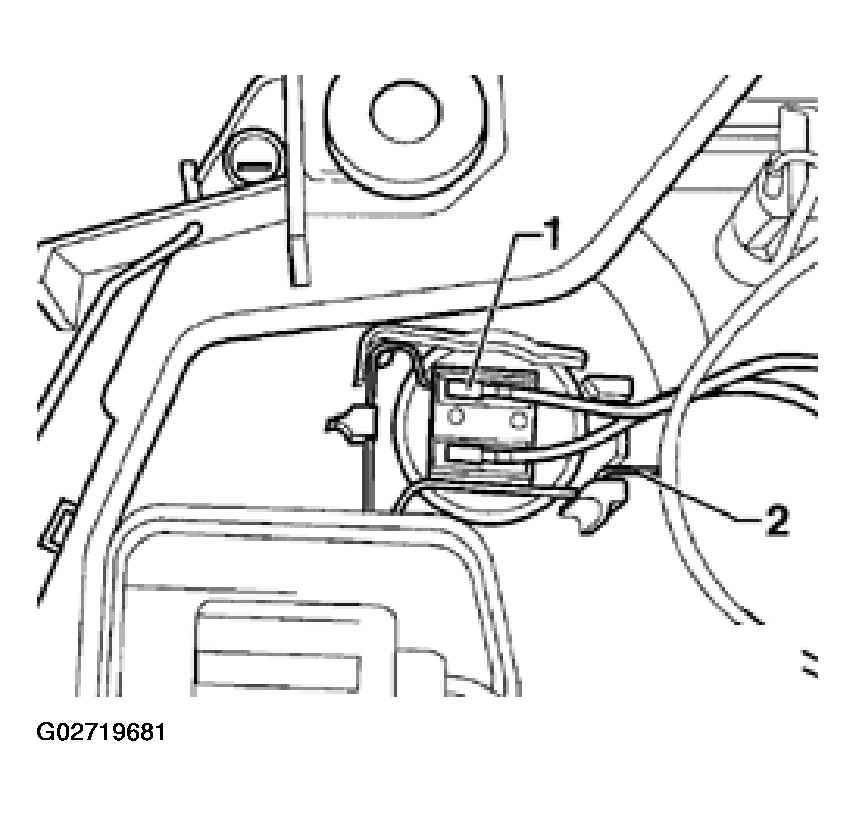

Fig 1: Removing High Beam Bulb

G02719681
