Halogen headlights, overview
NOTE:
Check headlight adjustment after working on the headlight system. See HEADLIGHTS, ADJUSTING
.
NOTE:

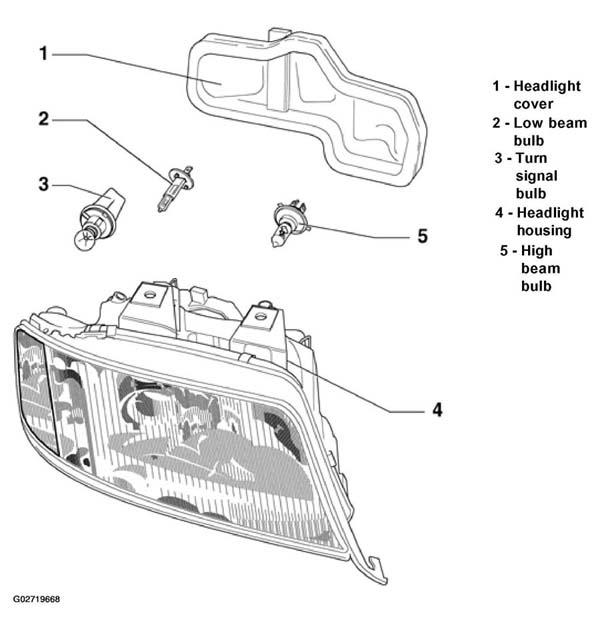

The following list refers to Fig 1
.
- Headlight cover
- Low beam bulb
- H1 - 12 V, 55 W
- Changing bulb. See HEADLIGHT BULBS, REPLACING .
- Turn signal bulb
- 12 V, 21 W
- Amber color
- Changing bulb. See Turn signal light bulb, removing and installing .
- Headlight housing
- High beam bulb
- H7 - 12 V, 55 W
- Changing bulb. See High beam bulb, removing and installing .
