Fog lights, removing and installing: Removing

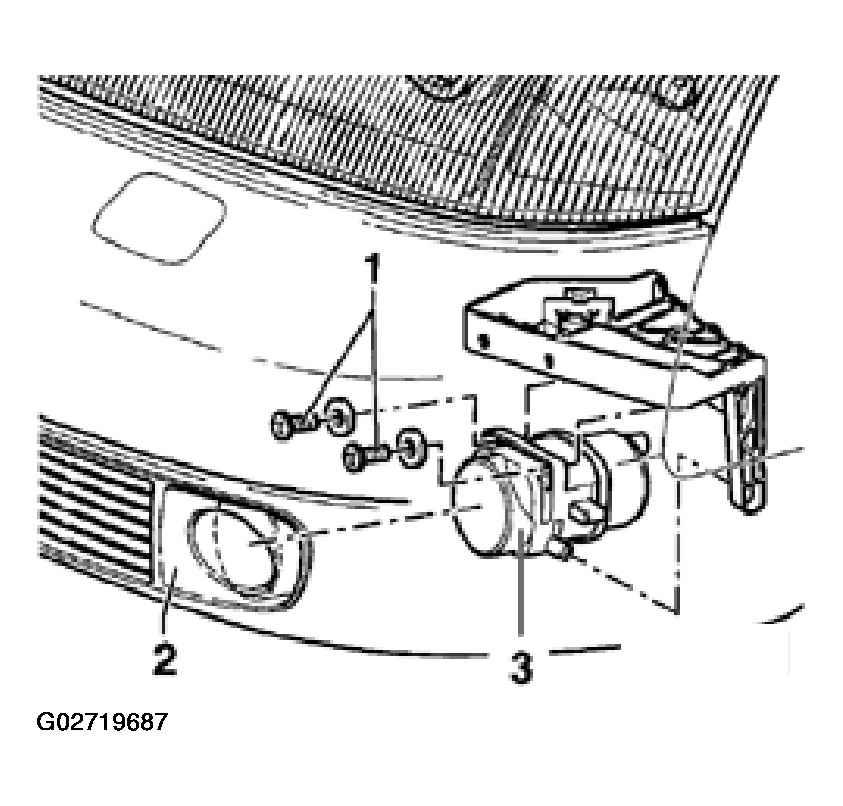

- From front, carefully pry out plastic trim panel -2- (or trim cover for towing anchor on right side of vehicle).
- Remove 2 Torx(R) screws -1- (Phillips-head screws on later models).
- Remove foglight unit -3-.
- Disconnect electrical connector.

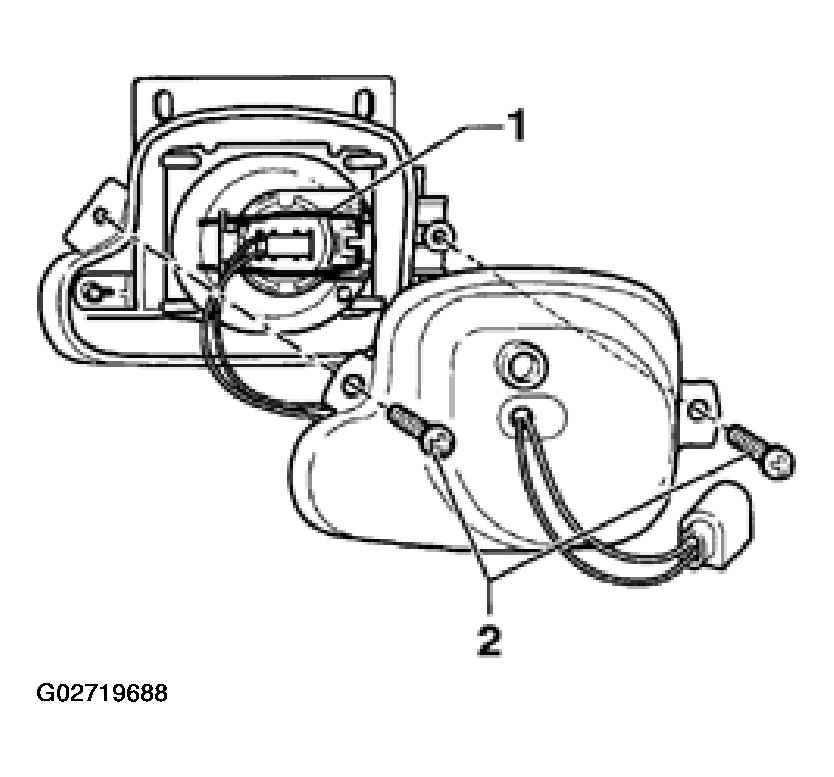

- Remove screws -2- on housing cover. See Fig 2 .
- Disengage wire clip -1- and remove bulb from housing.

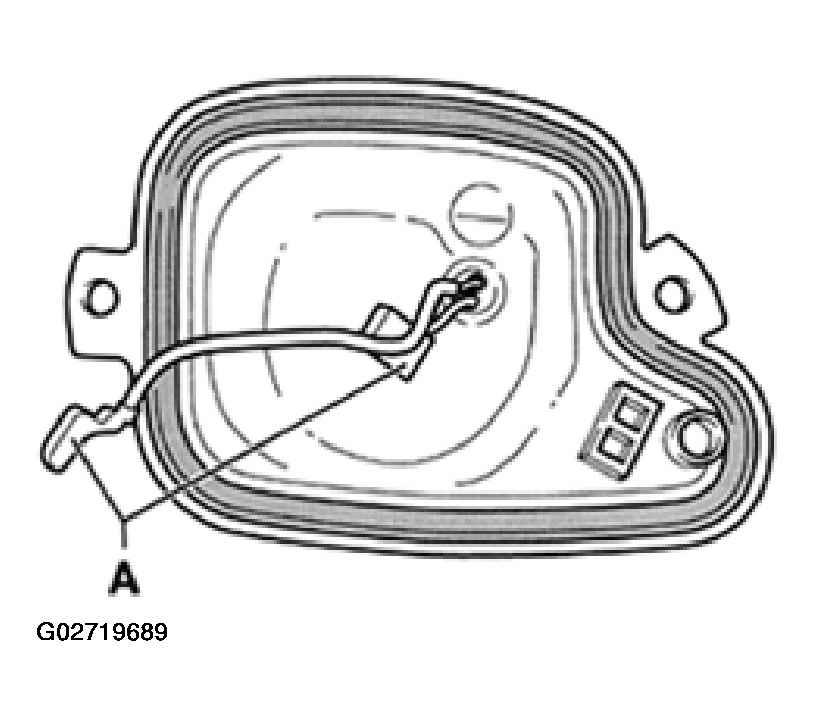

- Disconnect electrical connectors -A- for bulb at light housing cover.
