Fog lights, adjusting

For adjustment specifications. See FOG LIGHTS, CHECKING AIM AND ADJUSTING .

Pull off cover panels (arrow) from lower part of bumper.

Fig 1: Pulling Off Cover Panels From Lower Part Of Bumper

Turn adjusting screw (arrow) counterclockwise to lower beam.
There is no provision for lateral adjustment.

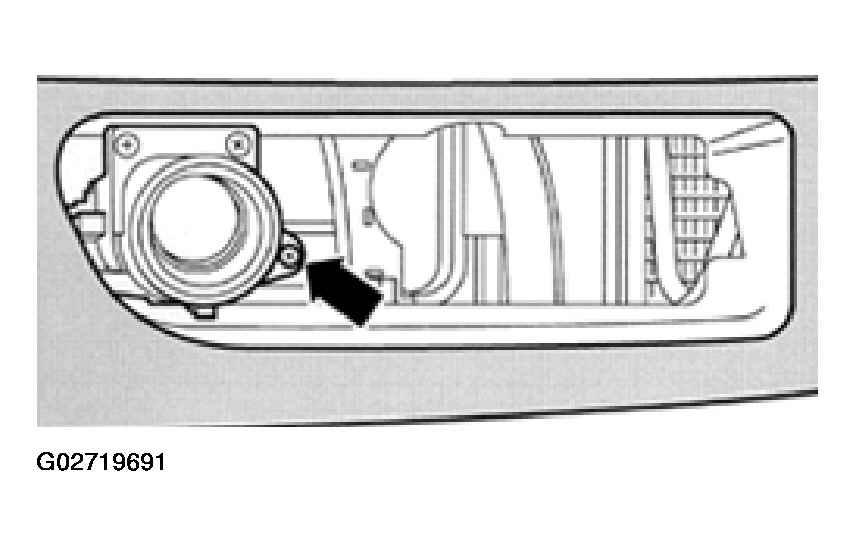

Fig 2: Locating Fog Light Adjusting Screw

NOTE: The illustration shows the right fog light. The location of the adjuster screw for the left fog light is in the same location but on the opposite side.
