Removing (front-wheel drive): Notes

The level control sensor is located at the center of the rear axle.

• Disconnect electrical connector.
• Remove level control sensor from bracket -2- and linkage -3- by removing nut -4- and both Allen screws (3 mm) at level sensor -1-.

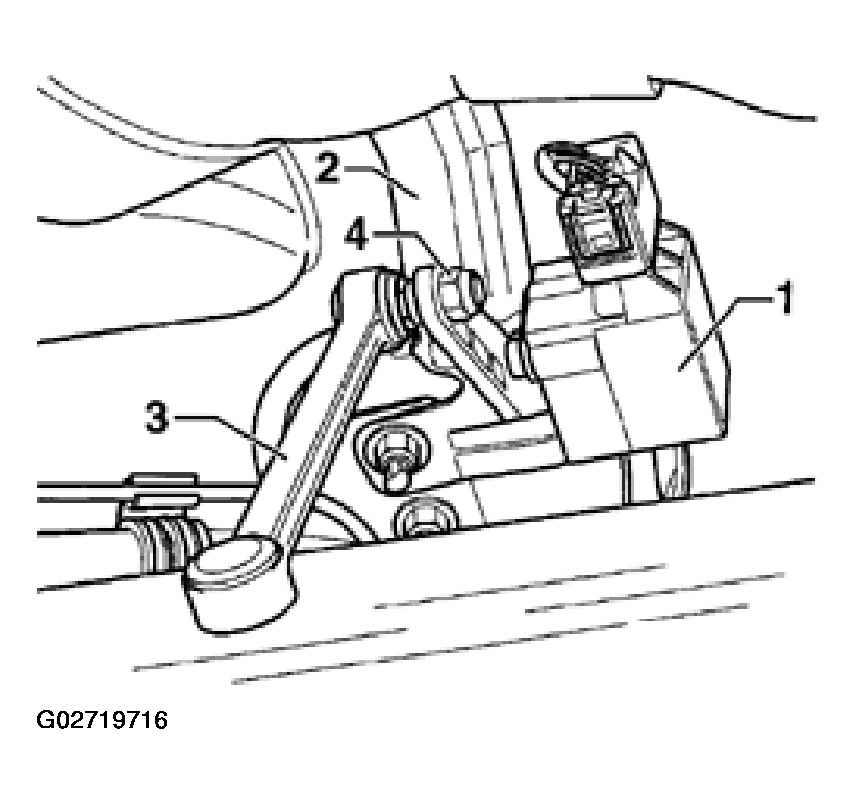

Fig 1: Removing Left Rear Level Control Sensor From Bracket & Linkage (Front-Wheel Drive)

• Remove bolt at rear axle and remove linkage -3-.
