Left front level control system sensor -G78-, removing and installing: Removing

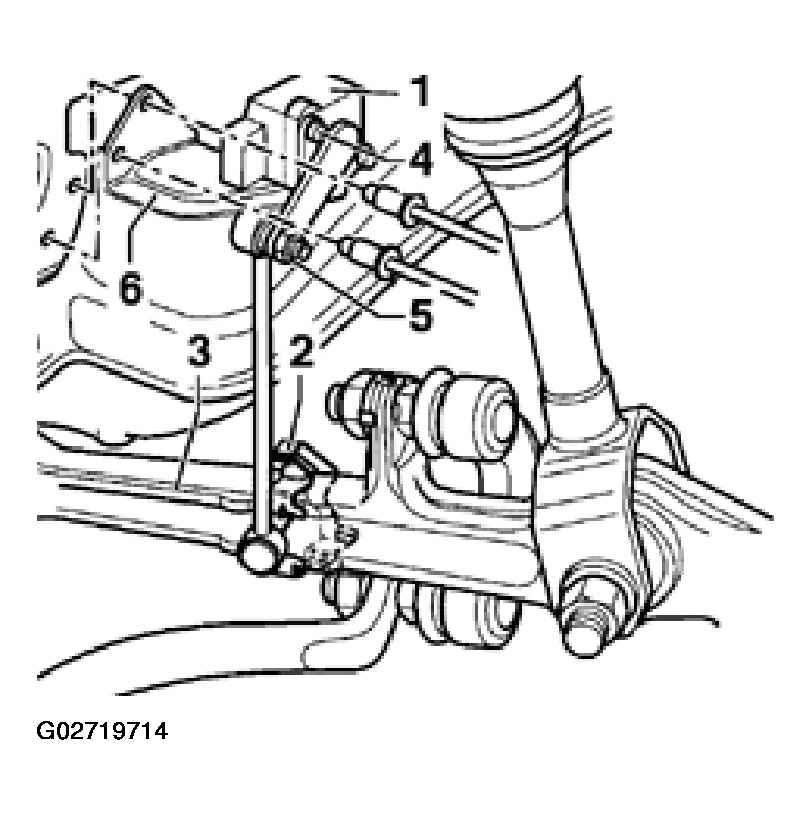

The front level control sensor -1- is secured with a retainer -2- to the left lower track control link -3- of the front axle.

• Disconnect electrical connector.
• Remove level control sensor from bracket -6- by removing nut -5- and both Allen screws -4- (3 mm).
Fig 1: Identifying Left Front Level Control Sensor And Bracket

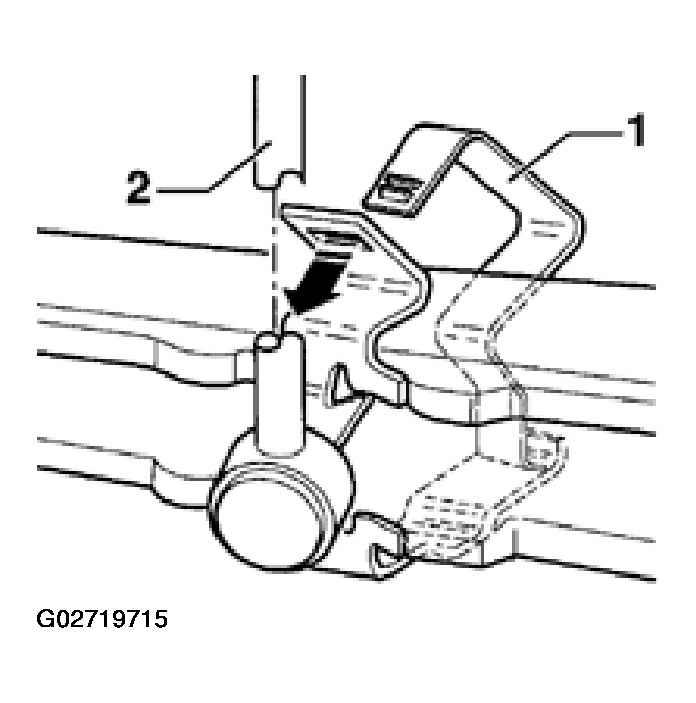

• By slightly depressing tabs (arrow) open wire retainer -1- at left lower track control link.
• Remove level control sensor linkage -2-.
Fig 2: Depressing Tabs, Opening Wire Retainer & Removing Level Control Sensor Linkage
