Switches in rear center console, removing and installing
>>
Removing
Switches in rear center console, removing and installing: Removing
Carefully pry out switch using flat screwdriver.
Disconnect electrical connections.
Be careful not to interchange the two green connectors for the seat heaters.

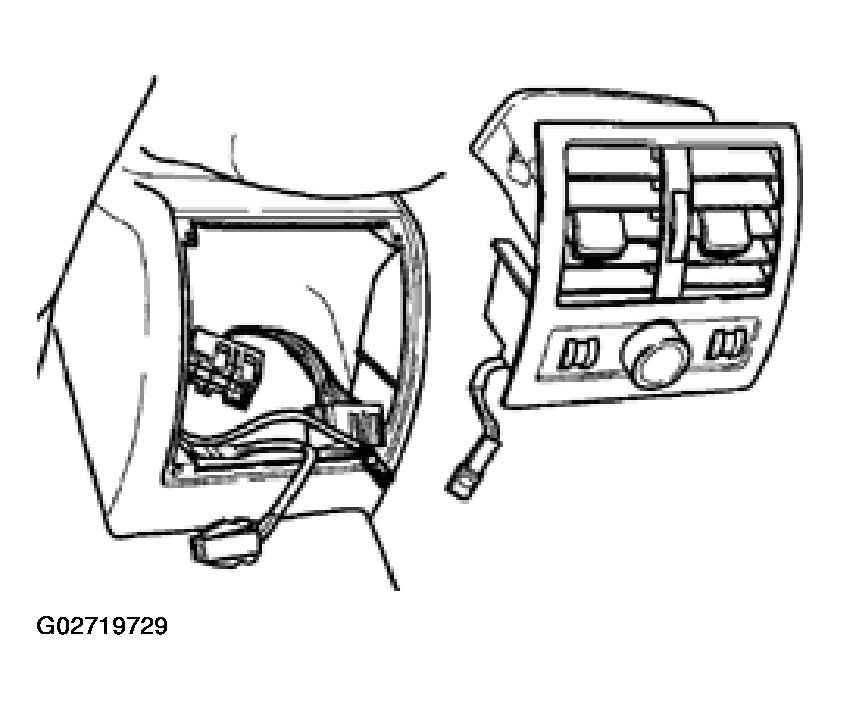

Fig 1: Prying Out Switchs In Rear Center Console And Disconnecting Electrical Connections
