Rear lid lock contact switch, removing and installing: Removing
- Remove rear lid lock. See REAR LID AND REAR LID LOCK, REMOVING, INSTALLING AND ADJUSTING .
- Disconnect electrical connector.

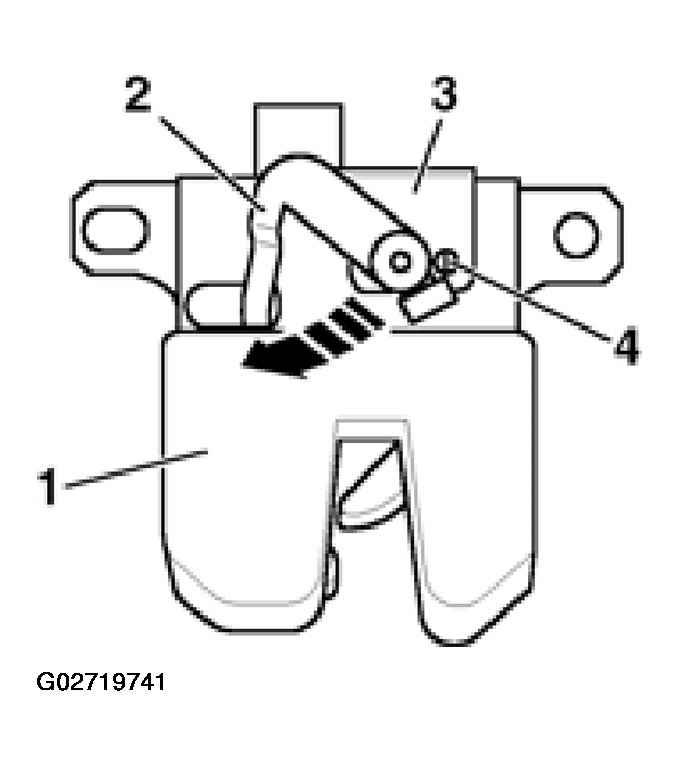

- With rear lid lock -1- removed, use flat screwdriver to release plastic tab -3- at two rivets -4-.
- Press lever -2- in direction of arrow and pull back plastic tab -3-.

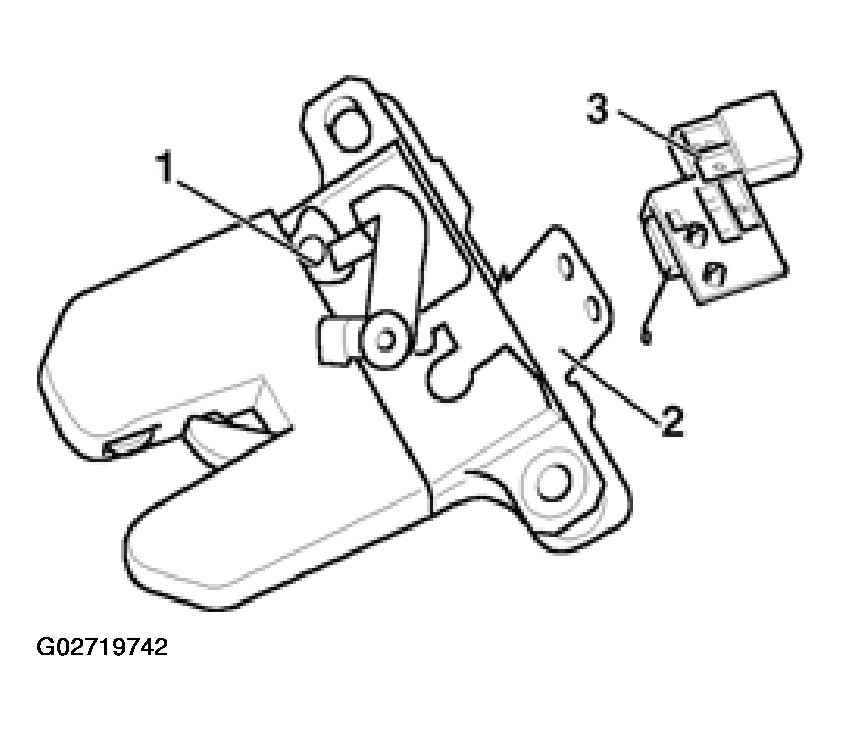

- Carefully remove contact switch -3- from trunk lock -1-.
